Crab clamp Zeppelin for crane G3500
- Crab clamp ESCAN401Z Zeppelin for crane G3500
€1,048.17 VAT incl.
Deleks products take about 15 to 20 days. |

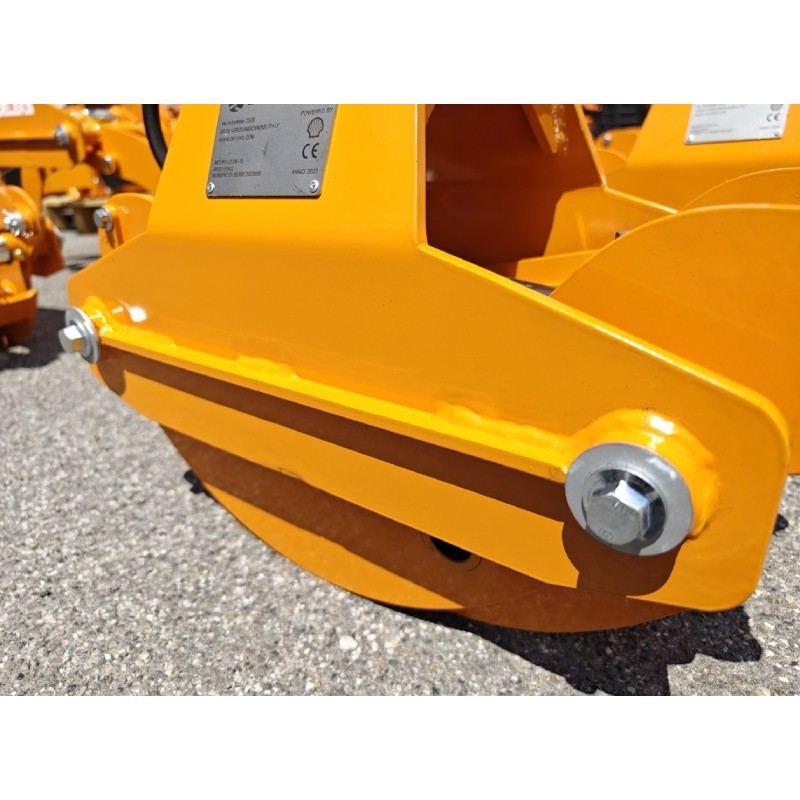

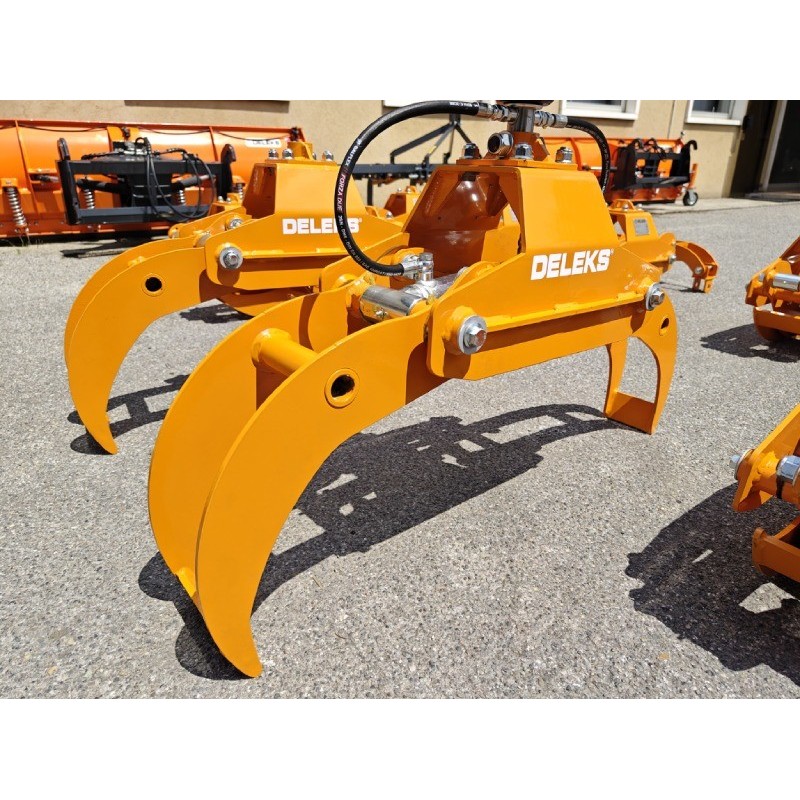

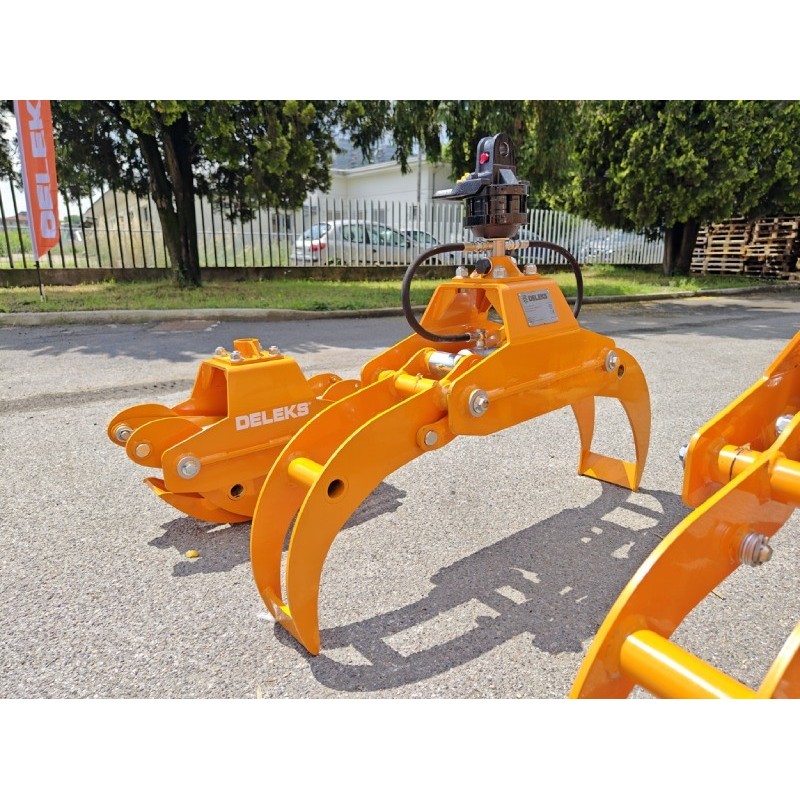

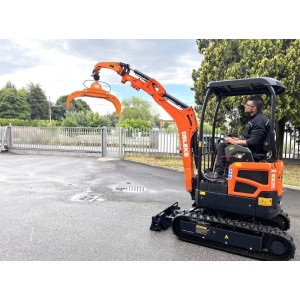

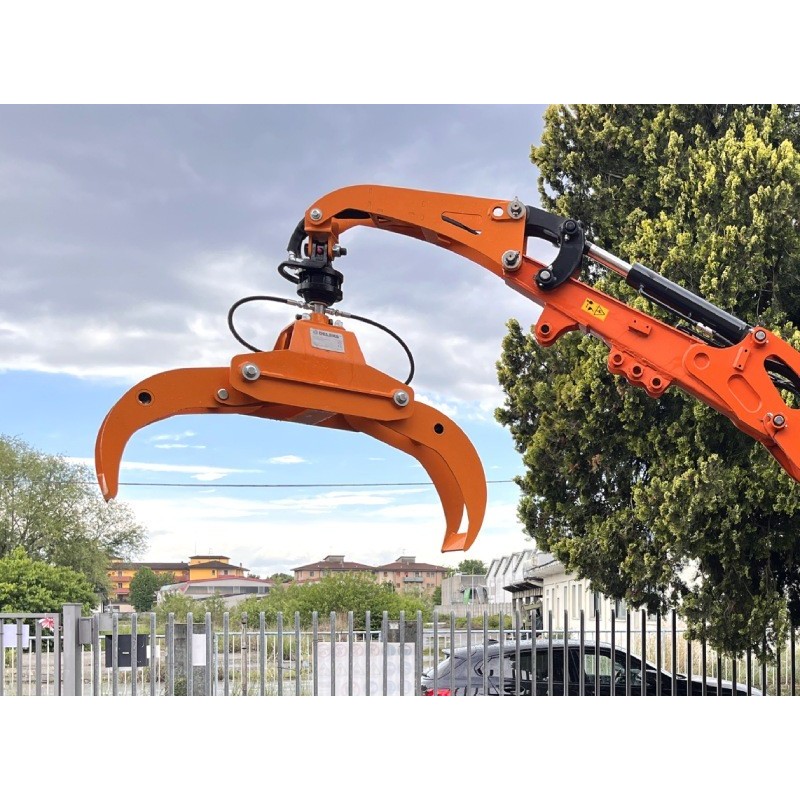

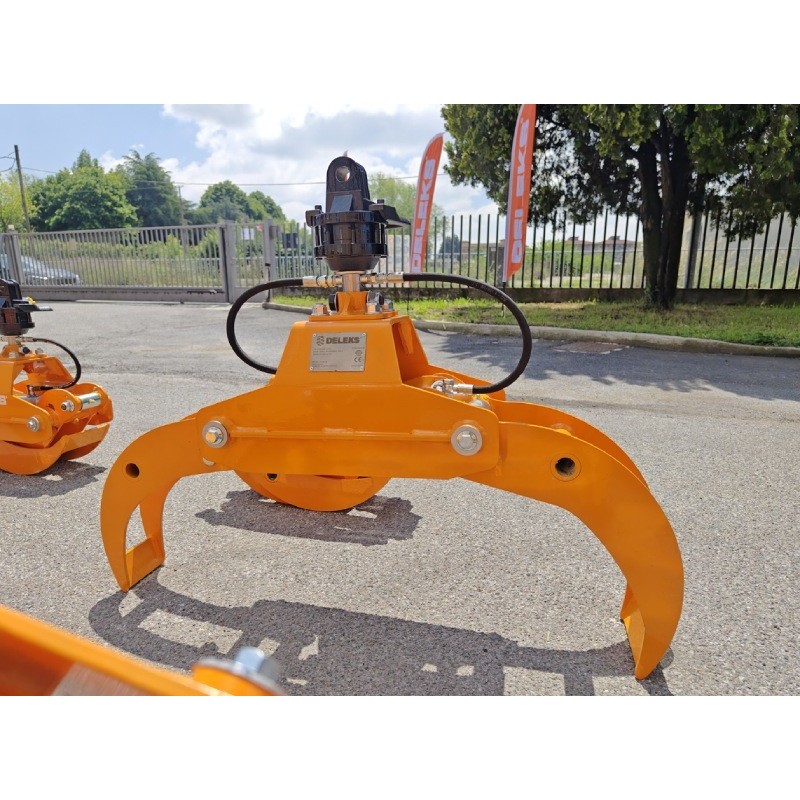

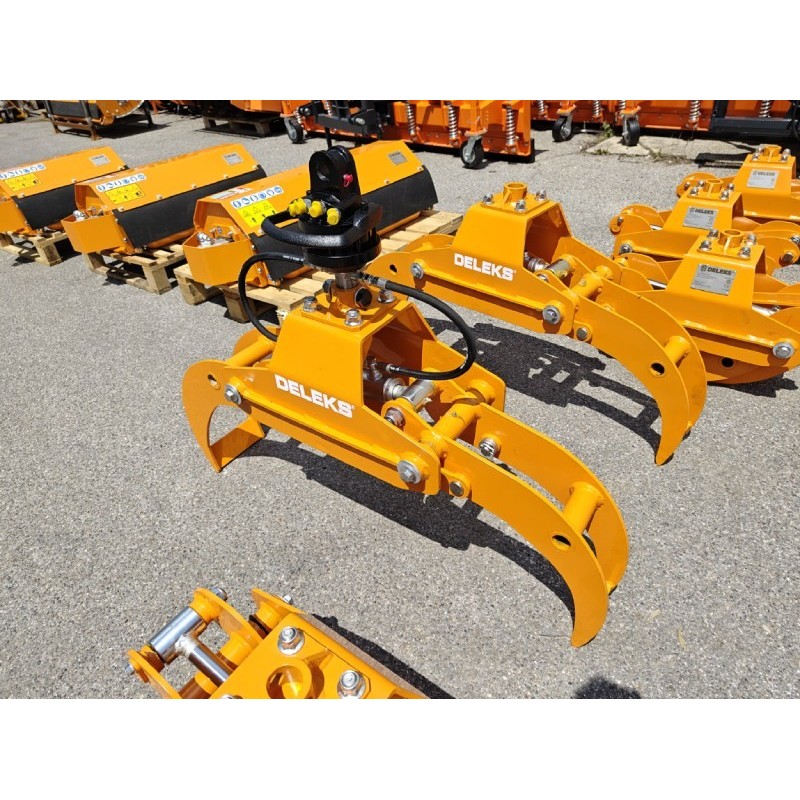

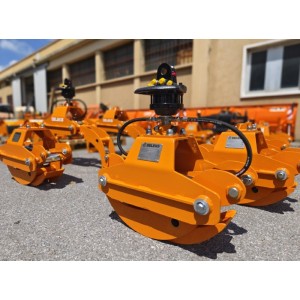

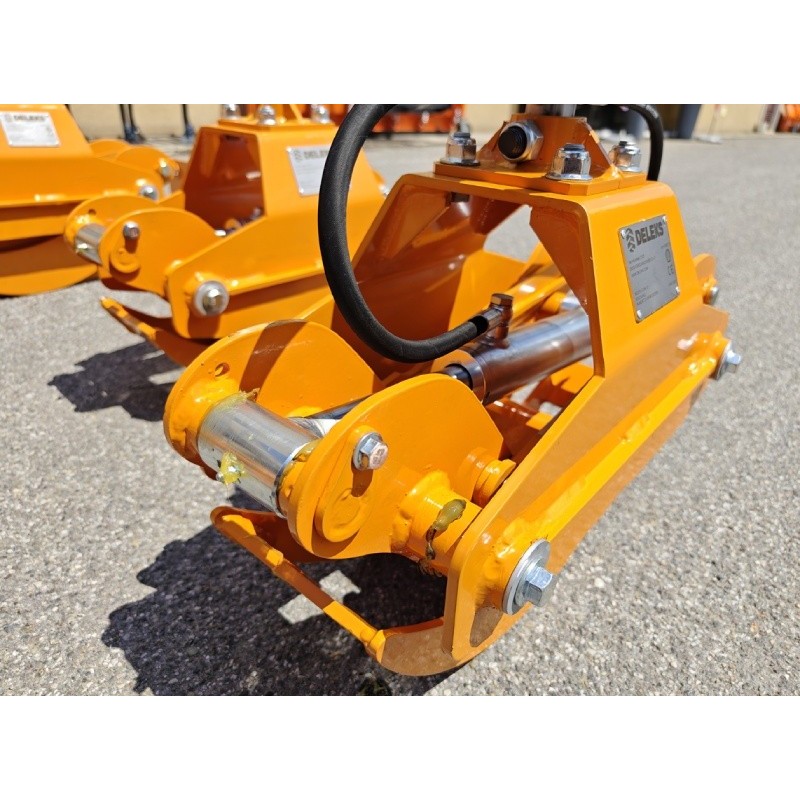

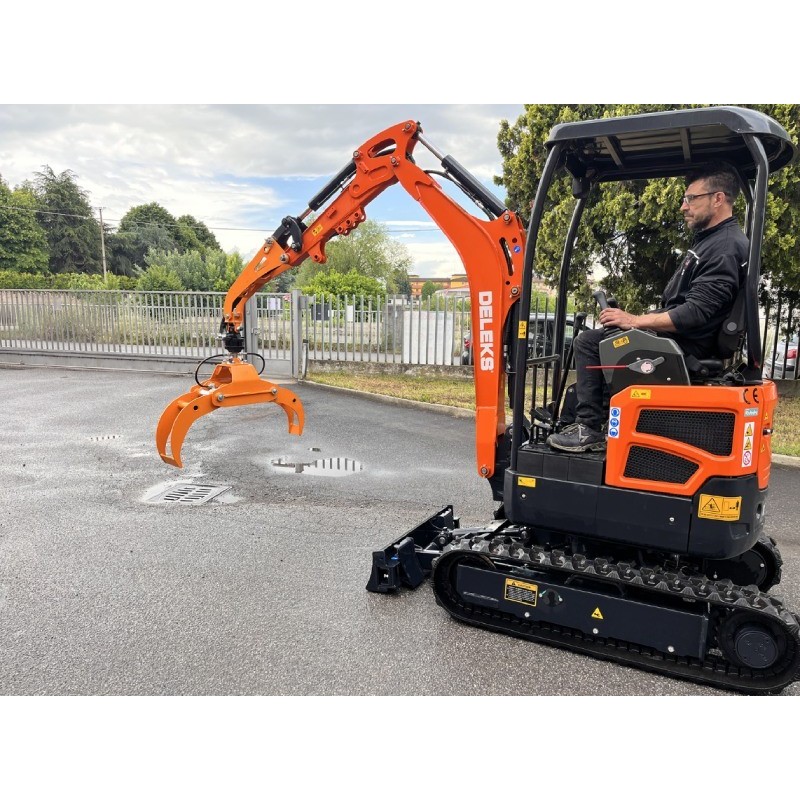

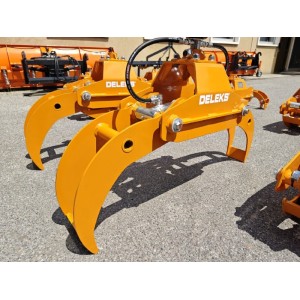

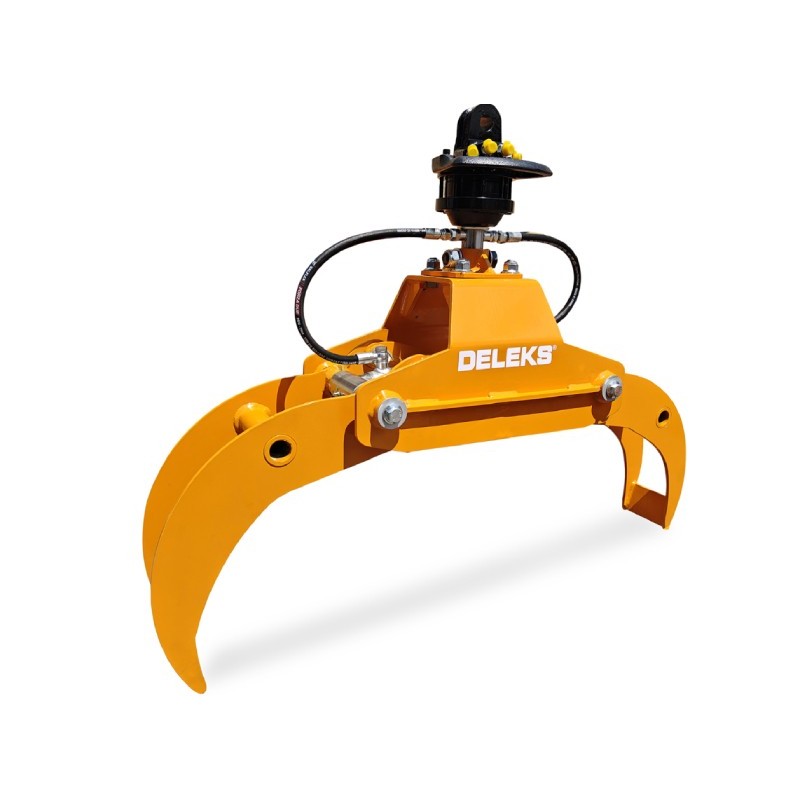

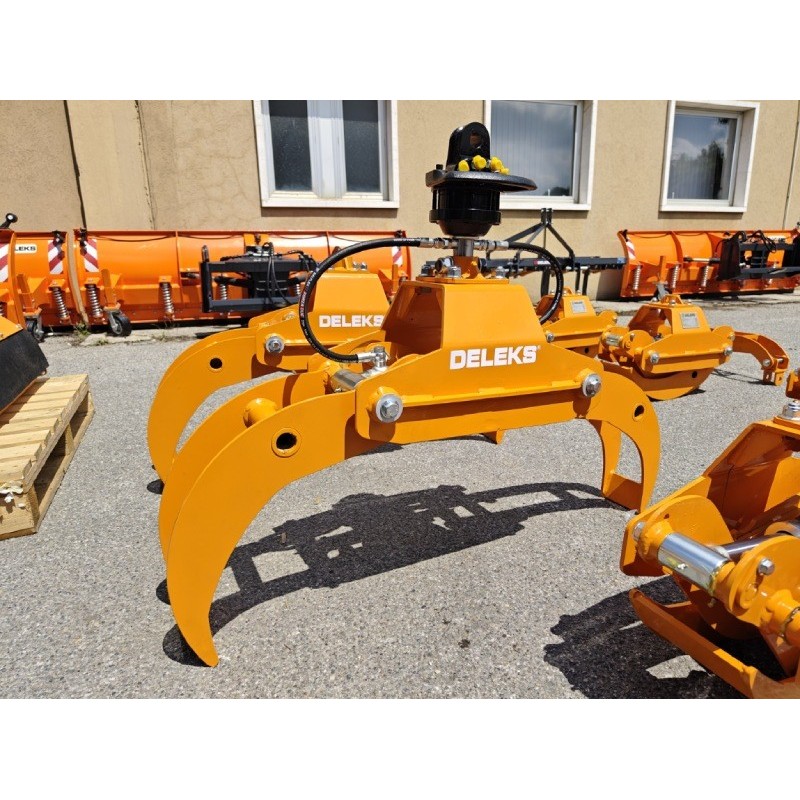

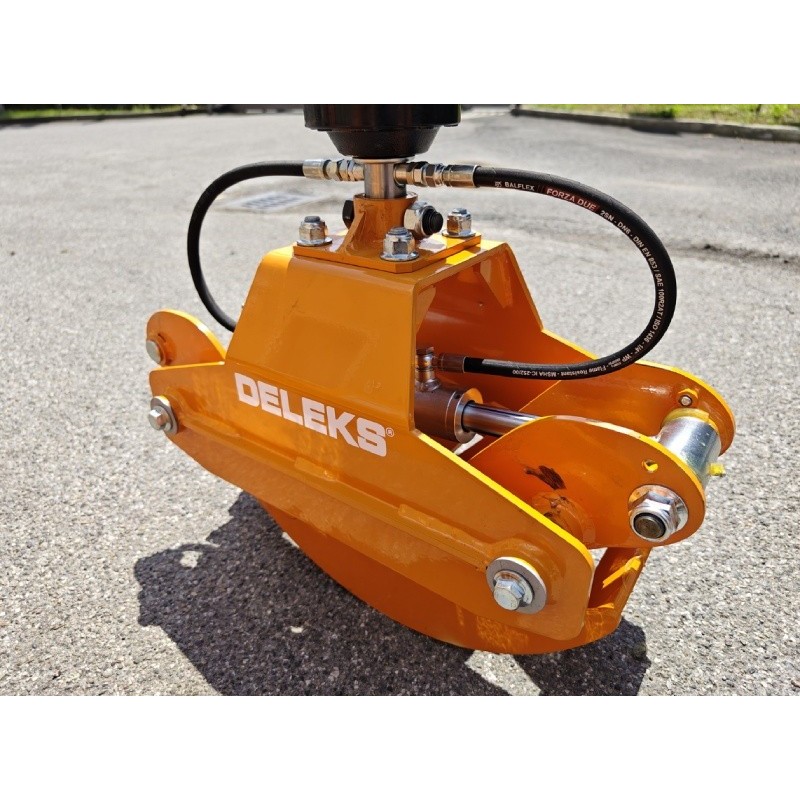

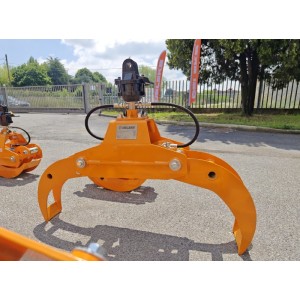

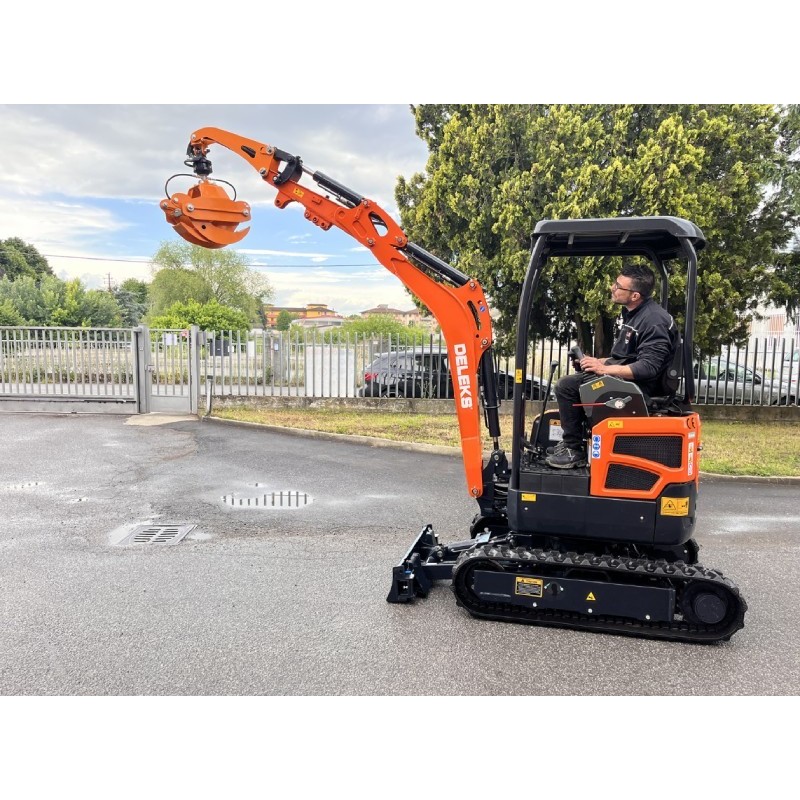

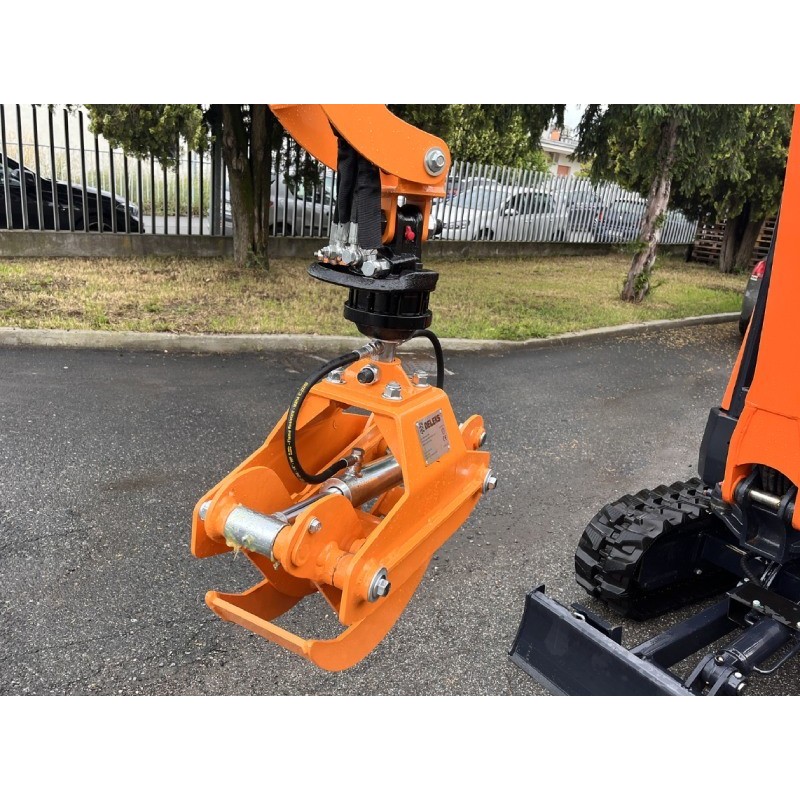

The DELEKS DK-10HR forestry grapple for mini-excavators and cranes is a light and robust grapple, ideal for transporting wood, stones, for forestry work or for moving debris. Its load capacity is 600 kg (maximum). It is suitable for mini excavators, has a CE conformity and a 2-year warranty.

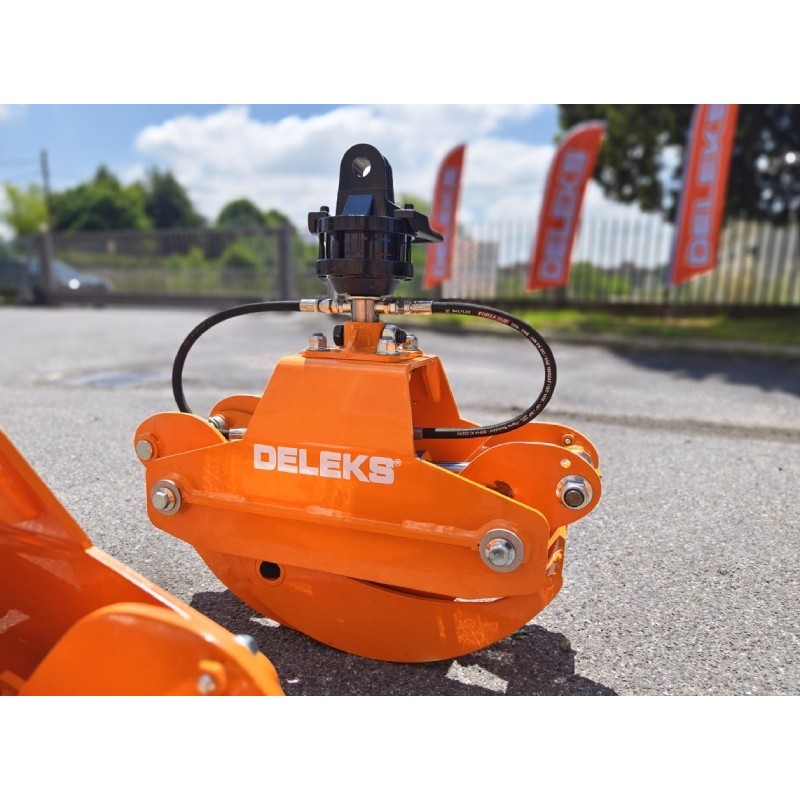

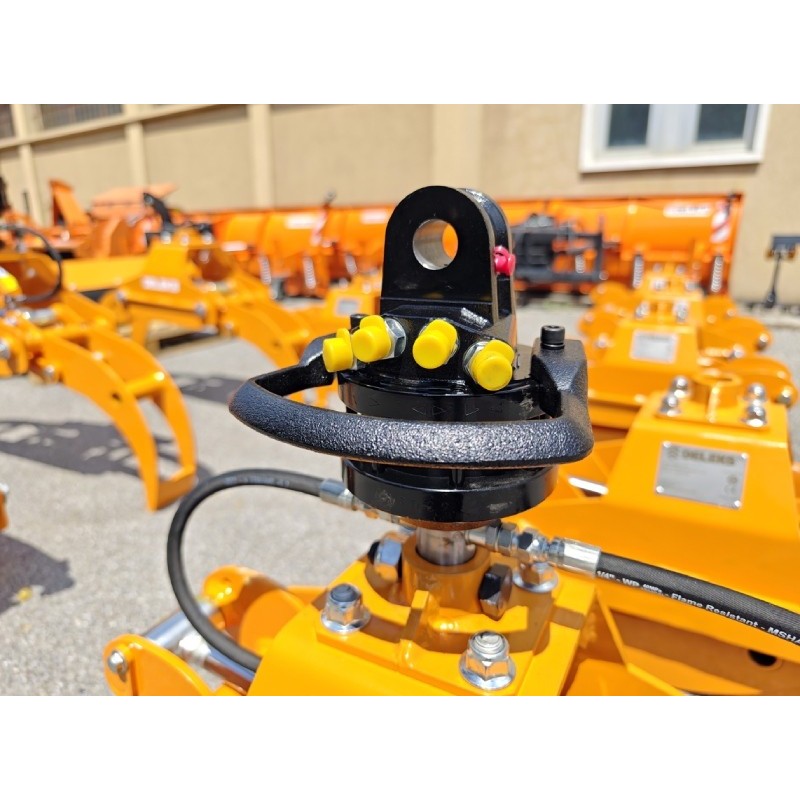

The Ingranaggi GR10 lombarda rotor is powerful, reliable and robust. It is designed to lift a load of 1000 kg with maximum effectiveness while minimizing downtime. To work properly the rotor needs 4 hydraulic outlets. Deleks can also propose a reduction valve to reduce the number of outlets to 2.

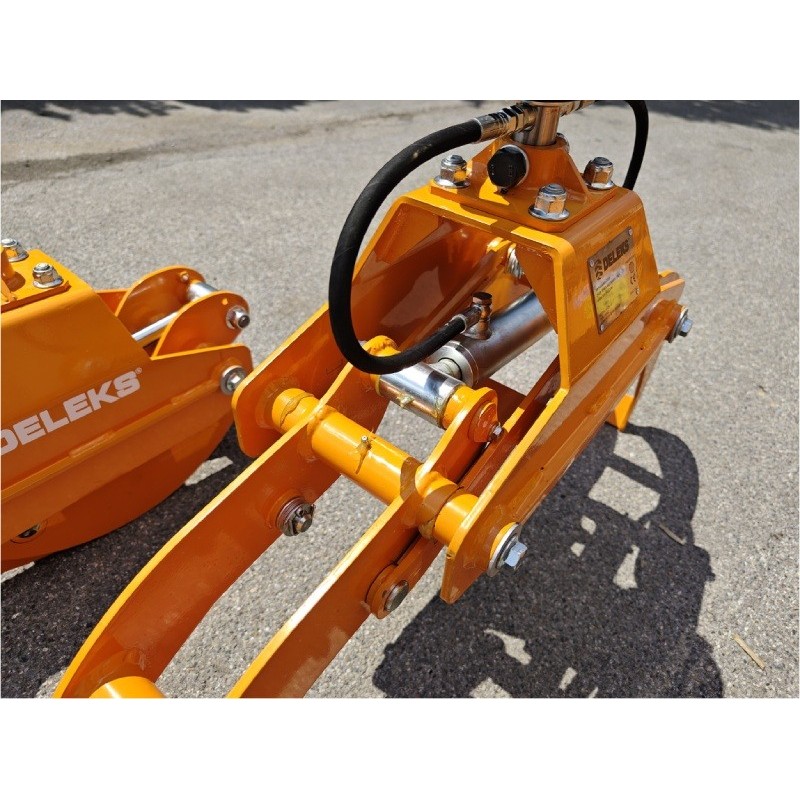

It has a 360 degree continuous rotation, is made of Hardox steel and has a unique design of the clamps that allows the clamping of debris or rocks and has a high clamping tension and reinforced clamps. It has a kit (optional) Solenoid "from 4 to 2 flexible for mini excavators:
With this kit, the 2 hydraulic hoses connected to the hydraulic cylinder of the shovelcan be used to feed the four outlets required by the rotator. To operate, the valve must be connected with a single cable to a 12 volt power Supply source. It is possible to connect to the horn and use the control key to choose between rotation or opening.
To operate, the valve has to be connected with a single cable to a 12 volt source power Supply. There is the possibility to connect to the horn, and use the control key to choose between rotation or opening. The kit includes 6 Rexroth diverter tracks made in Italy.
Weight | 73.0 kg |
Load capacity | 600.0 kg |
Plate thickness | 8.0 mm |
Min./max. oil pressure | 80 - 120 bar |
Optimal oil flow | 18 - 22 l/min |
Other dimensions | See photos |
Hydraulic hoses | 400 bar pressure |

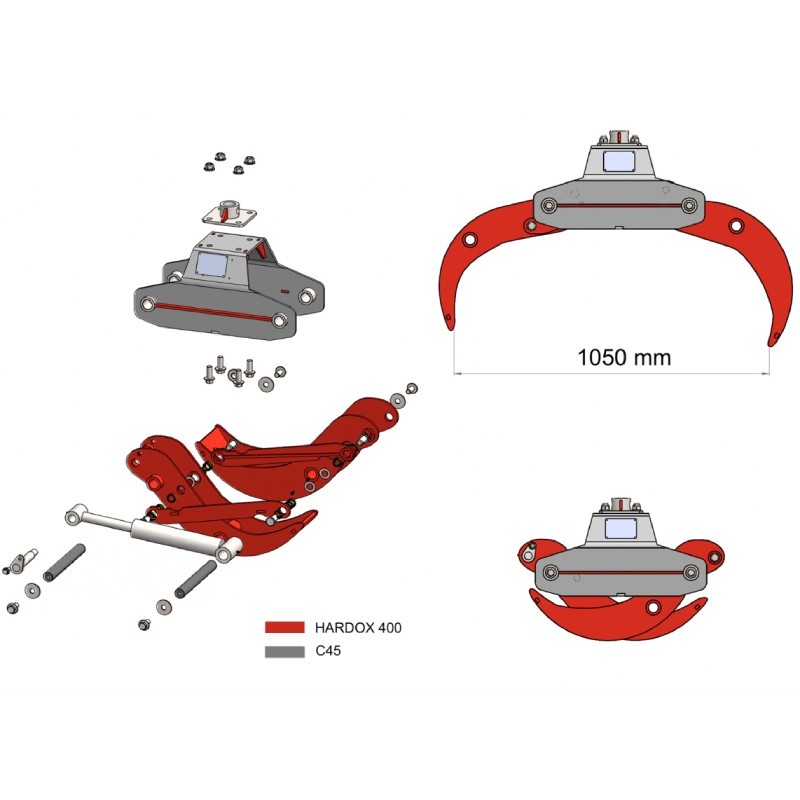

Maximum opening | 1050.0 mm |
Height, clamp open | 885.0 mm |
Height, clamp closed | 720.0 mm |
Width, clamp open | 1150.0 mm |
Depth | 350.0 mm |
Minimum branch diameter | 50.0 mm |

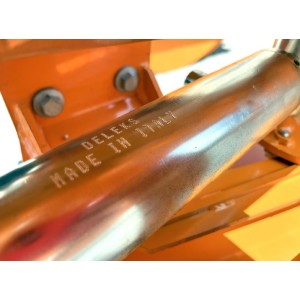

ø hydraulic piston | 50.0 - 25.0 mm |
Max. pressure | 200 bar |
Rotator | Lombarda Ingranaggi GR-10 (1,0 ton) |
Range of excavators | 1.5 - 3.0 ton |
Width, grapple seamed | 660.0 mm |
Packing dimensions | 60 x 80 x 45 cm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
