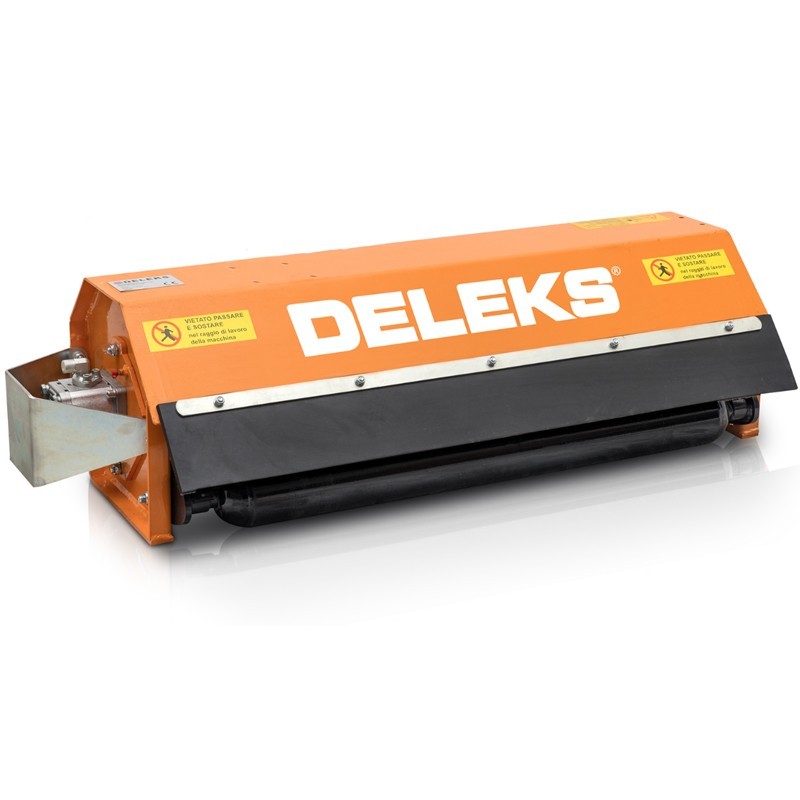

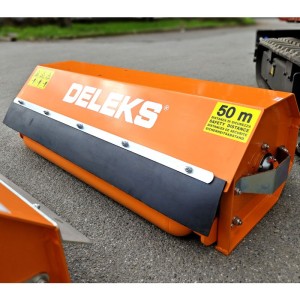

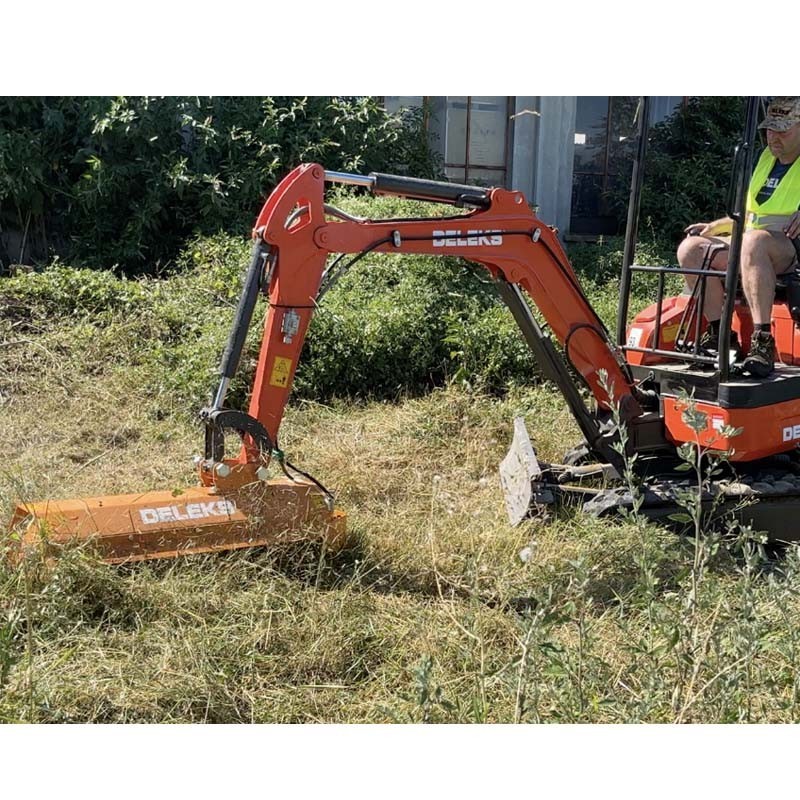

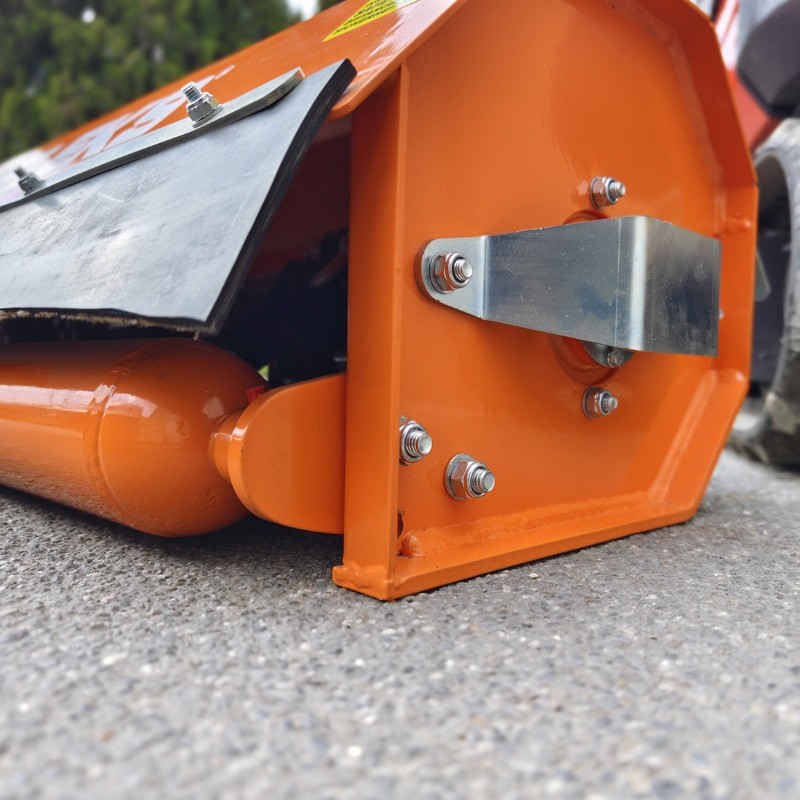

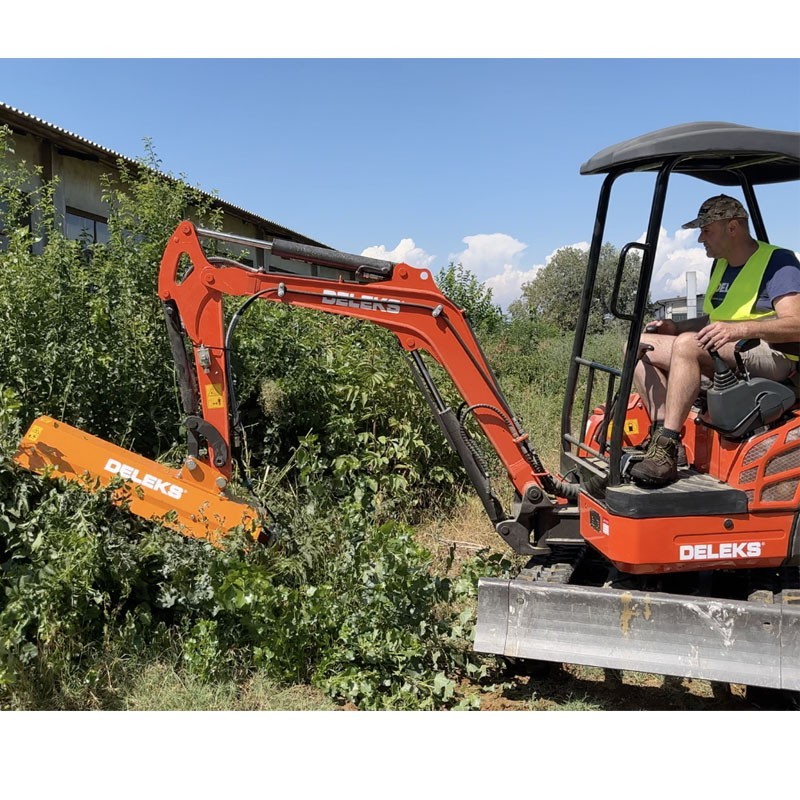

Brush cutter head for mini excavator AR 100, 1000 mm
The Hydraulic brush cutter for mini excavator of 1.0 - 2.0 tons, it is specially made for brambles, bushes, ditches, benches, embankments, branches.

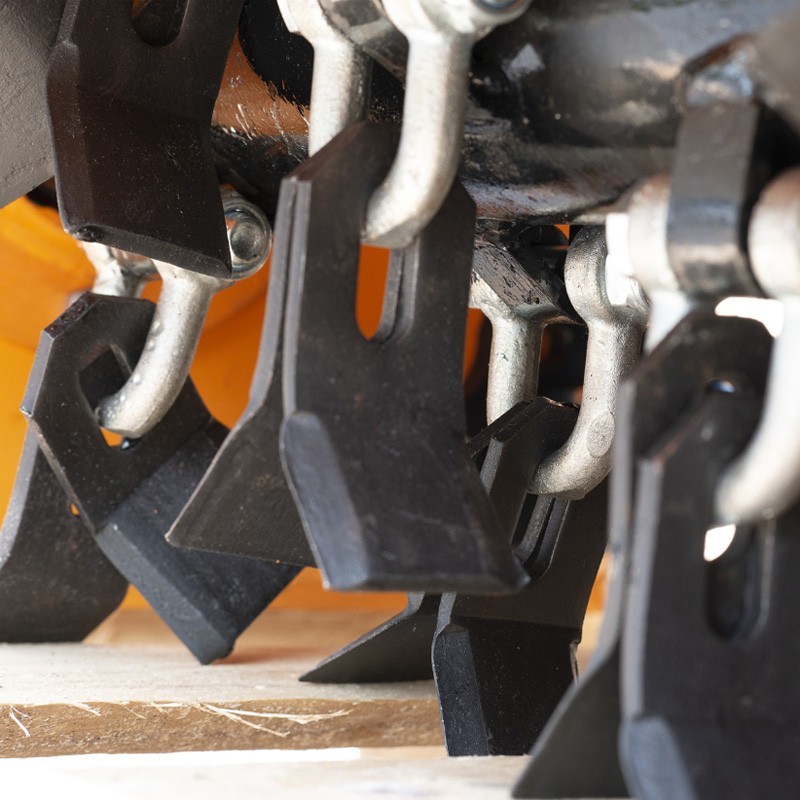

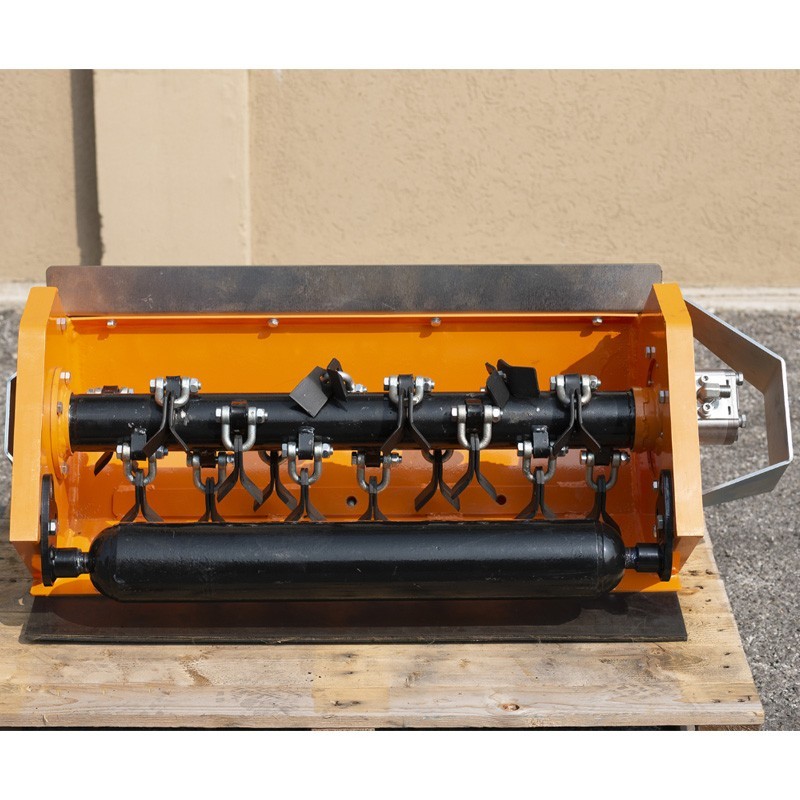

It has a structure made entirely of Swedish SSAB steel, its rotor is made with a tube THYSSENKRUPP, that is electronically balanced, of S355 steel with a thickness of 8 mm. Its rotor tube, turned along its entire length, ensures maximum linearity, and its hammers have support in HARDOX
To use this brush cutter head, you require certain requirements for its operation such as: it is preferable to have a double pump, one that is for the base of tracked and another for the services, this must contain at least about 20/22l/min.
The rotation of the blades is in both directions. necessary to have the pedal with double effect, the pump needs a third pipe for drainage that discharges into the tank. It has a working width of 1000 mm and a weight of 93 kg, this makes it a very functional, useful, and long-lasting machine, being a very effective tool during work hours..
Characteristics
| Working width |
1000.0 mm
|
| Total width |
1300.0 mm
|
| Minimum/maximum cutting height |
20.0 - 80.0 mm
|
| Weight |
100.0 kg
|
| Height of the hood |
340.0 mm
|
| Maximum cutting diameter |
20.0 mm
|
| Sheet thickness |
5.0 mm
|
| Transmission: rotor speed |
1500 rpm (revolutions per minute)
|
| Rotor: diameter |
76.0 mm
|
| Rotor: type of bearings and dimension |
SKF 6207 + SKF UCF206
|
| Rotor: balancing |
Electronic
|
| Rotor: blade thickness |
8.0 mm
|

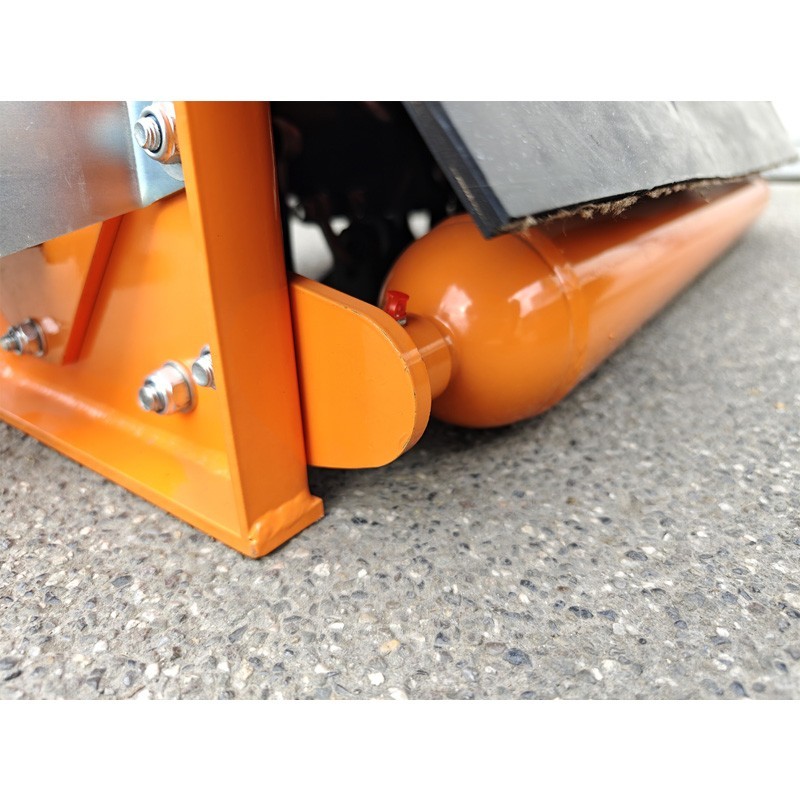

| Roll: diameter |
102.0 mm
|
| Roll: sheet thickness |
5.0 mm
|
| Roll: type of bearings and dimension |
UCFL205 |
| Minimum/maximum oil pressure |
5 - 8 bar
|
| Optimal oil flow |
20 - 22 l/min
|
| Maximal pressure |
200 bar |
| Length of the hood |
520.0 mm
|
| Number of slats |
48 |
| Lamas: Weight |
130.0 g
|
| Lamas: ø hole |
13.0 mm
|
| Knives: base width |
50.0 mm
|
| Knives: diagonal |
85.0 mm
|
Packaging dimension
|
133 x 60 x 50 cm |
