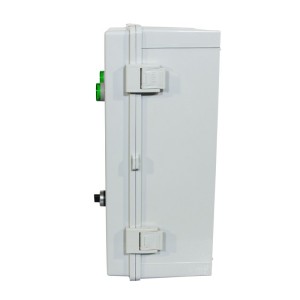

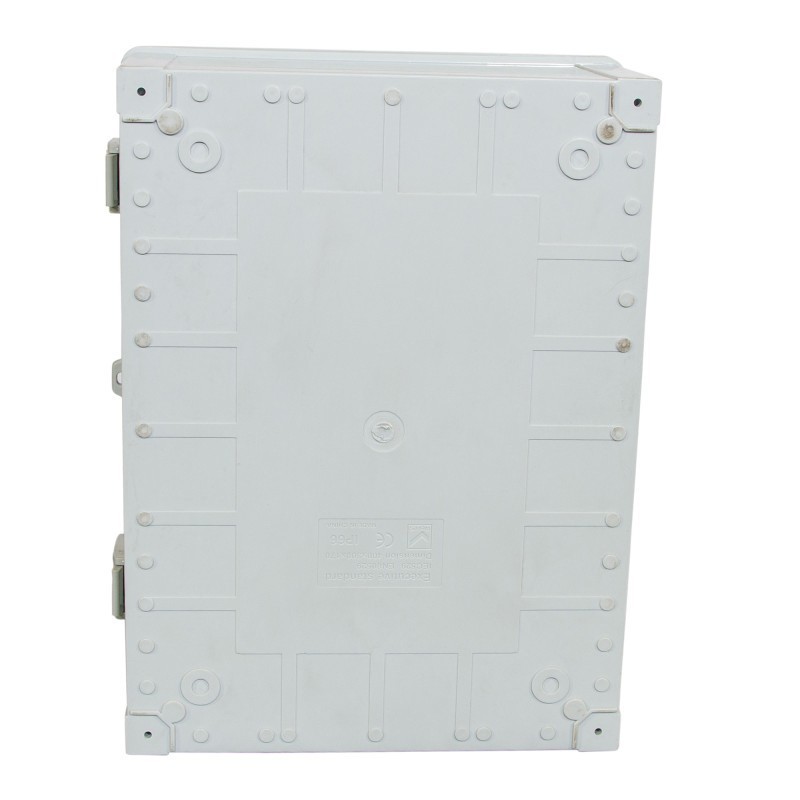

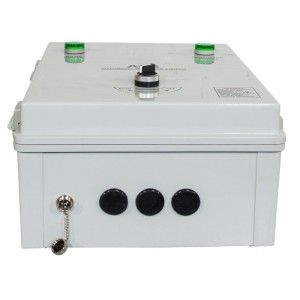

ATS Box 12-P Hyundai 50 A 230 V
- Frequency : 50 Hz
- Voltage Range : 160 A 240 V
- Maximum current : 50 A

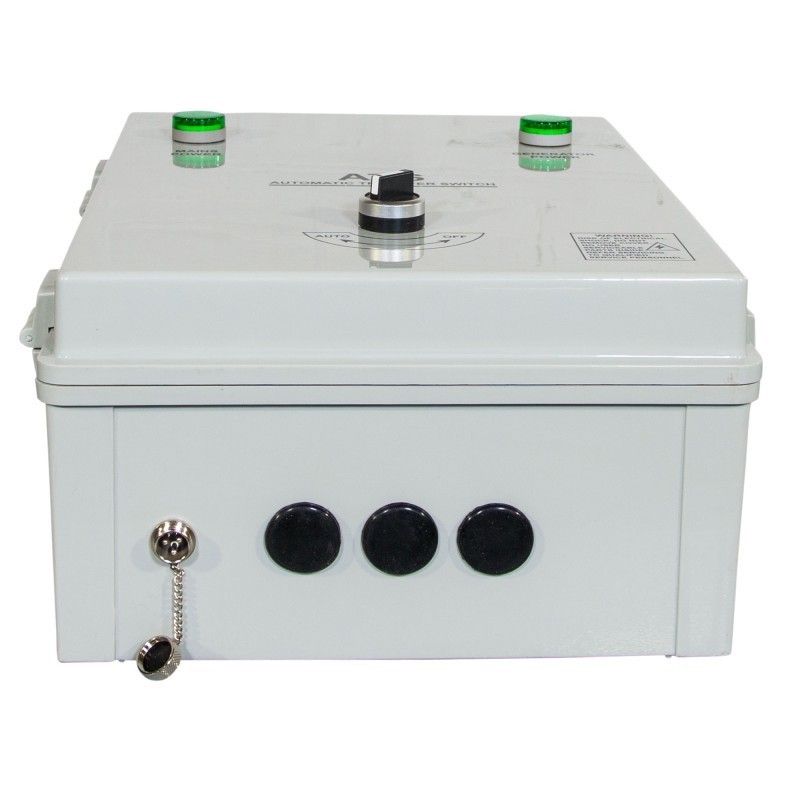

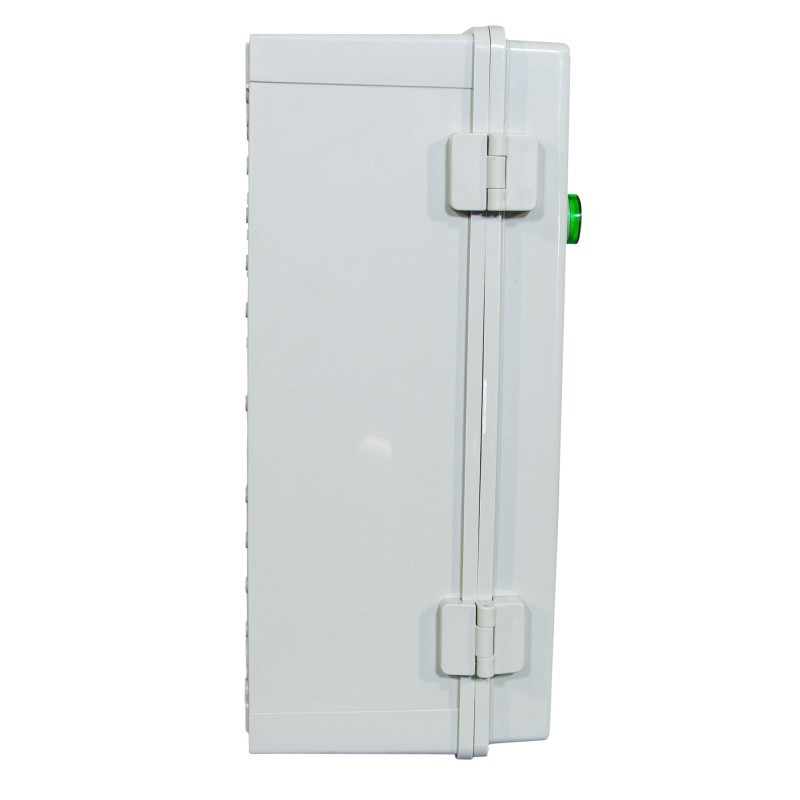

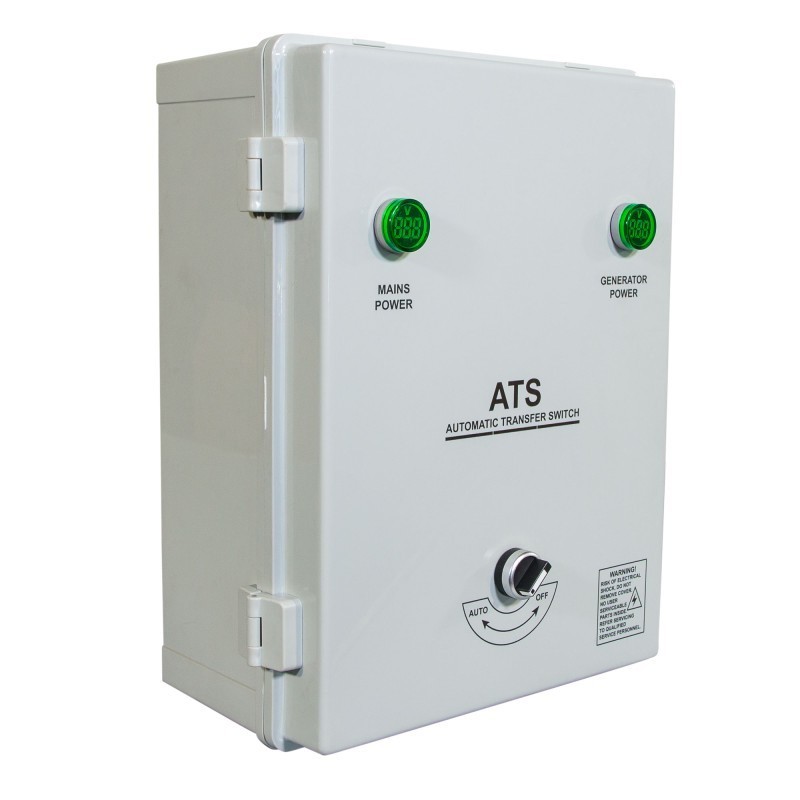

ATS 12-P box Hyundai AC-ATS-W-50A-1
The automatic changeover switch is used to switch from the primary power Supply source, such as the local grid, to the secondary source, such as a generator. It is mainly used when there are failures in the public supply, starting the generator automatically. It also stops the generator when power is restored from the public grid.
- Painted sheet steel enclosure
- Easy to use and install.
- Compact design
- Single-phase. Rated voltage 240V 50/60Hz

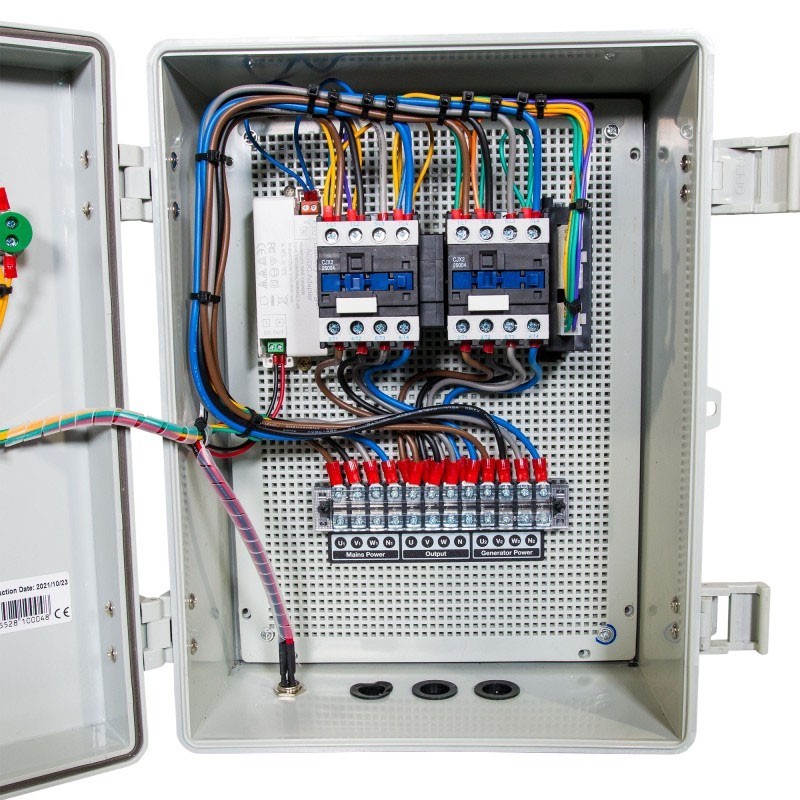

- Quick connectors for generator and system
- Standard plugs.
- Easy connection for generator monitoring
- Carrying handle

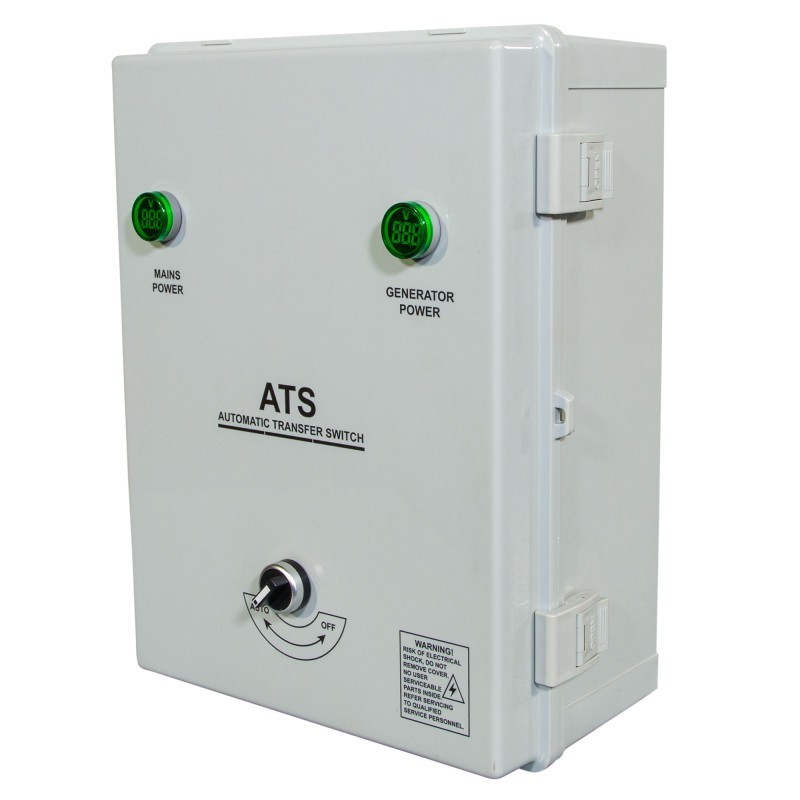

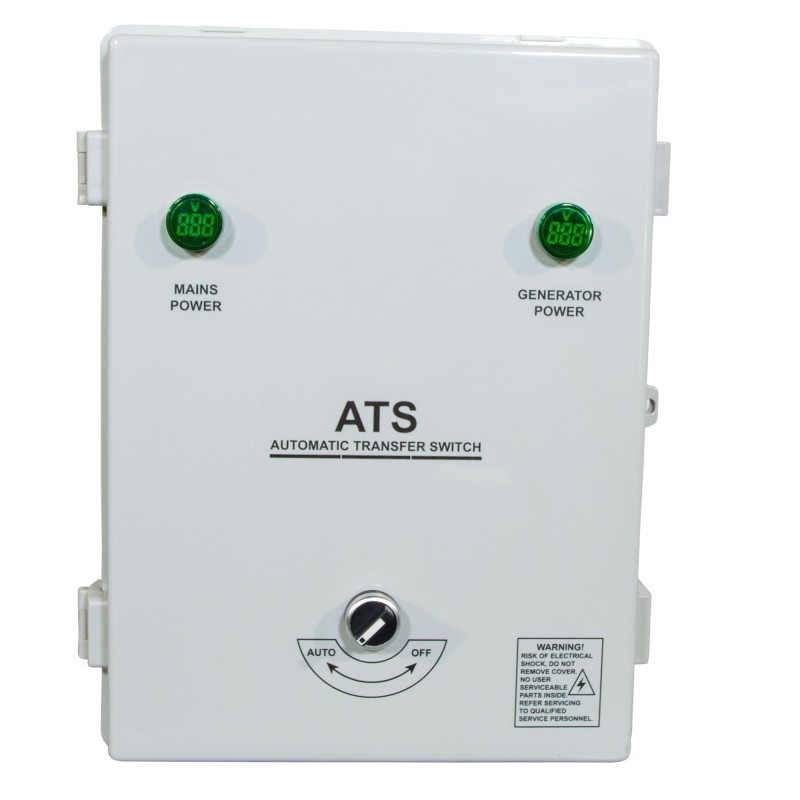

- LCD display that monitors Voltage, Current and Frequency.

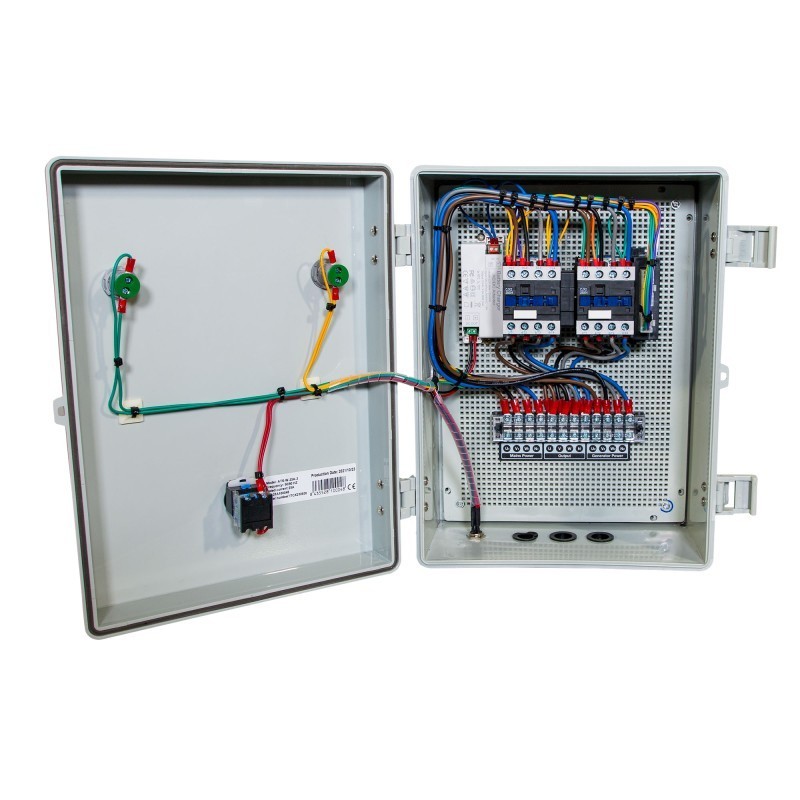

- Protected control module.
| Net Weight | 9,7 Kg |
| Frequency | 50 Hz |
| Voltage Range | 160 A 240 V |
| Maximum Current | 50 A |
| Maximum Power Connection | 10 Kw |
| Generator Connection | Wiring |
| Generator Monitor Connection | 3 Pin Connector |
| Power Supply Input | Wiring |
| Output Connector | Wiring |
| Transfer Delay | 2 To 5 Sec. |
| Return Delay | 10 Sec. |
| Dimensions | 365x445x250 mm |
