Block cutter Sima MAGNUM L 400 V

Rating:
(0)
  • Maximum disc Ø: 1000 mm
  • Cutting depth: 420 mm
  • Max. cutting length: 702 mm
  • Weight: 280 Kg
En stock
€4,451.65 excl. VAT
- 4%
€4,273.58 excl. VAT
€5,171.04 VAT incl.
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


Block cutter Sima MAGNUM L 400 V
€5,171.04
Select
Qty

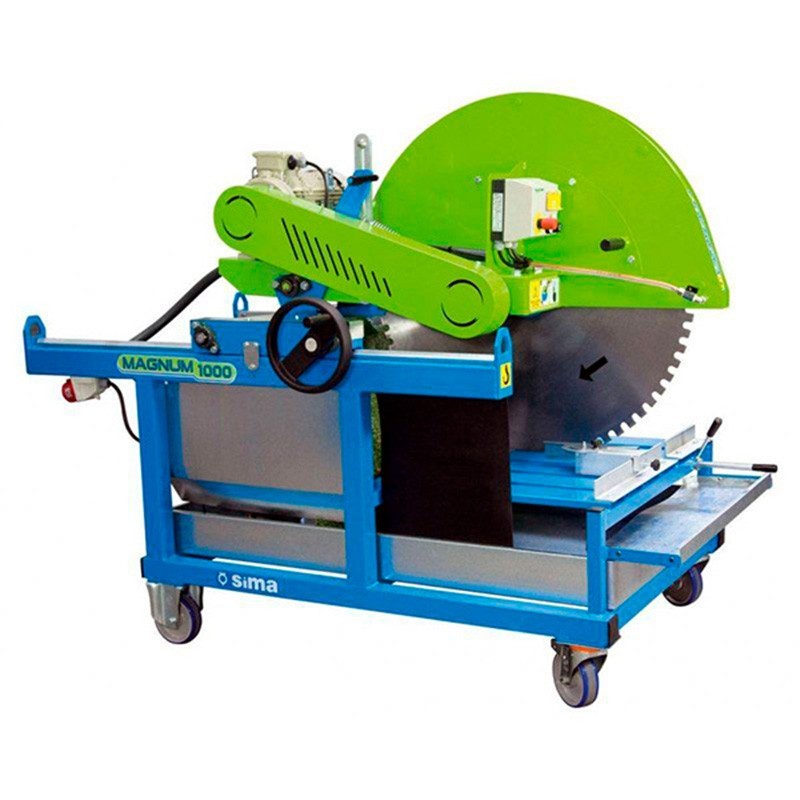

Block cutter Sima MAGNUM L

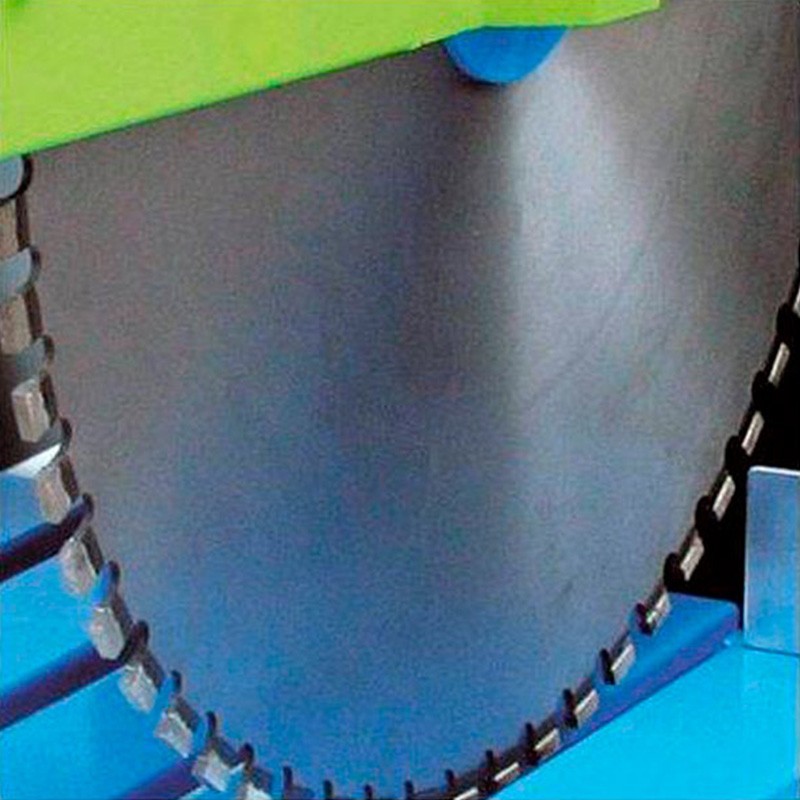

The block cutter Sima MAGNUM L offers high performance in cutting large blocks of all types of building materials thanks to its interchangeable disc that adapts to each type of material.

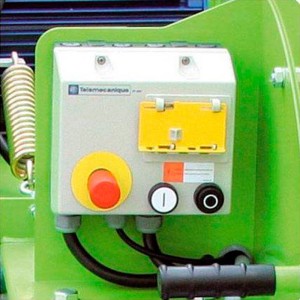

Among others, the most remarkable improvements of the MAGNUM 1000 are the star-delta starter, its high flow pump and the reinforcement of the lower part of the bed.

Features

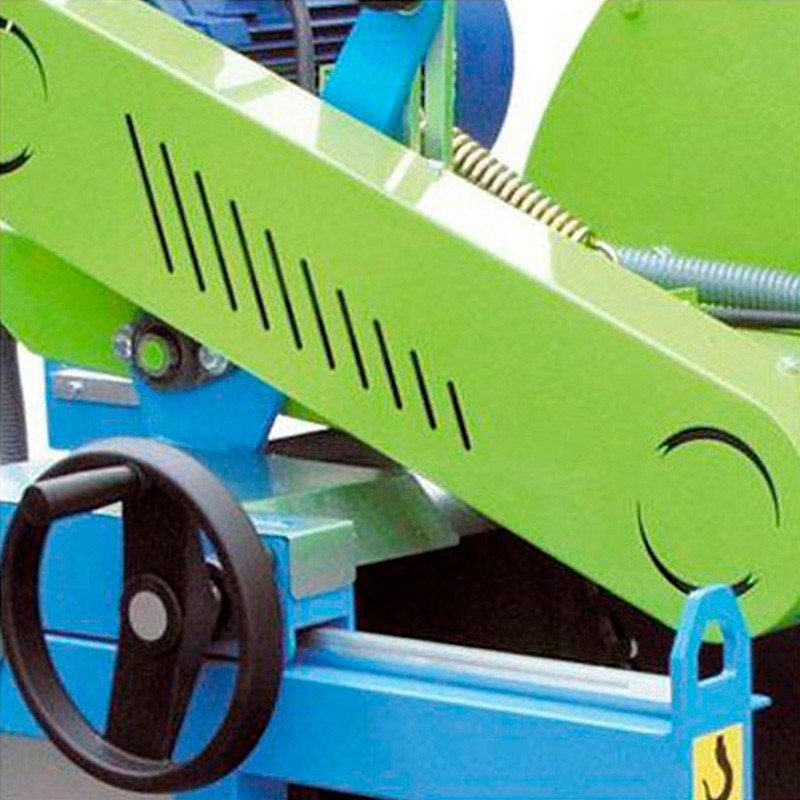

  • Handwheel-driven manual feed, which gives the head a very smooth movement with minimum effort.
  • Allows the cooling of the disc with water driven by the pump from the tank or directly from the mains.
  • Simple system for cutting height adjustment with effective head locking.
  • Durability. Built on a sturdy monobloc chassis mounted on four wheels for easy movement.
  • All electrical components comply with the requirements of the different applicable European Standards.
  • Maximum cutting length up to 844 mm and maximum cutting depth up to 420 mm.
  • Front wheels with locking brake system.
  • Smooth and silent operation, thanks to its belt transmission. High cutting precision.
  • Integrates a large 87-liter water tank tray, removable for cleaning, and made of galvanized steel.
  • Bearings designed to operate in watertight conditions, thus extending the life of its components.
MODEL MAGNUM L 700 MAGNUM L 1000
Three-phase Three-phase
Code 10051001 10051000
Motor Voltage (V) 400 400
Frequency (Hz / Pin) 50 / 5P 50 / 5P
kW (HP) 5,5 (7,5) 7,5 (10)
Tray water capacity (L/Gal) 87/22,9 87/22,9
Outer disc diameter (mm/inch) 725 / 28" 1000 / 40"
Disc inside diameter (mm/inch) 60 / 2,3" 60 / 2,3"
Disc included No No
Max. cutting length (mm/inch) 844 / 33,2" 702 / 27,6"
Max. depth of cut (mm/inch) 272 / 10,7" 420 / 16,5"
Net weight (Kg) 280 303
Packing dimensions L x W x H (mm) 2160 x 1260 x 1500 2160 x 1260 x 1500
93416

Specific References

mpn
10051001
New

✔️ Advantages of making purchases in the Spanish territory

  • National warranty: By purchasing from authorized distributors throughout Spain, you are assured of receiving a 100% Spanish warranty for your products.
  • Local after-sales service: In case of any inconvenience or need for after-sales service, you will have a more efficient and accessible support when purchasing within Spain.

❌ Disadvantages of buying outside Spanish territory

  • Complicated warranty management: Buying products outside Spain can make warranty management difficult, as there may be problems with the Spanish serial number or delays in the process.
  • Limited after-sales service: The availability of after-sales service may be limited or less accessible when purchasing products abroad.
  • Tax declaration: When purchasing products outside Spain, customers may be required to make an additional tax declaration, such as an intra-community purchase, which may involve additional tax formalities.
