Electrohydraulic interceptor for tractor Zeppelin

Electrohydraulic Interceptor Zeppelin

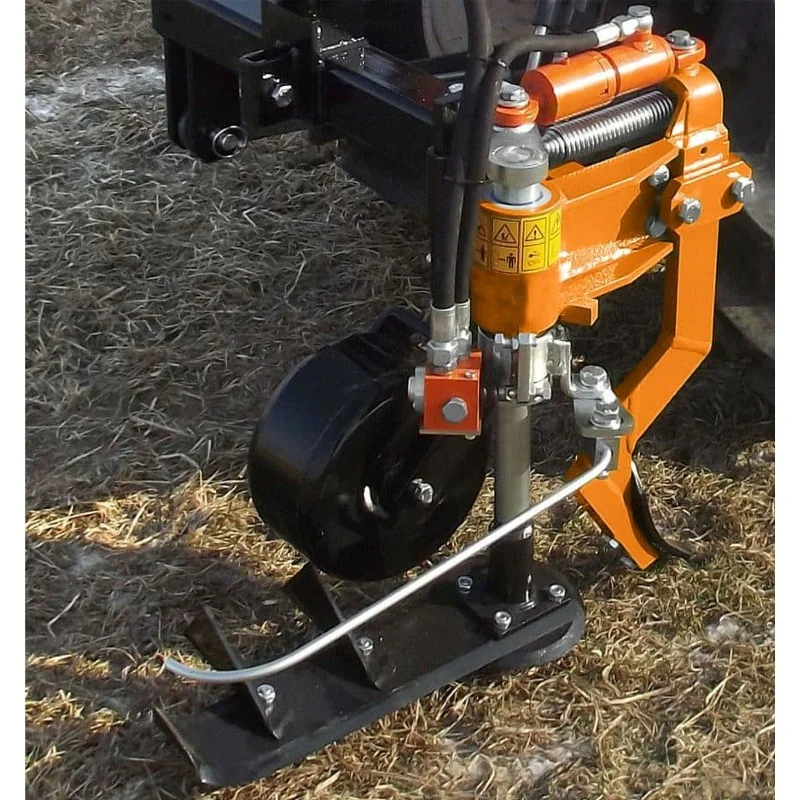

The electro-hydraulic interceptor Zeppelin is an agricultural equipment designed to eliminate weeds between plants in a mechanical and precise way, replacing the use of chemical products. Thanks to its advanced hydraulic system, it automatically detects the presence of vines or obstacles and retracts the shovel to protect the crop, guaranteeing efficiency and safety in all types of rows.

Technical features

• Drive: Fully hydraulic, with electro-hydraulic control.
• Operating voltage: 12V.
• Hydraulic flow rate required: 10-20 L/min.

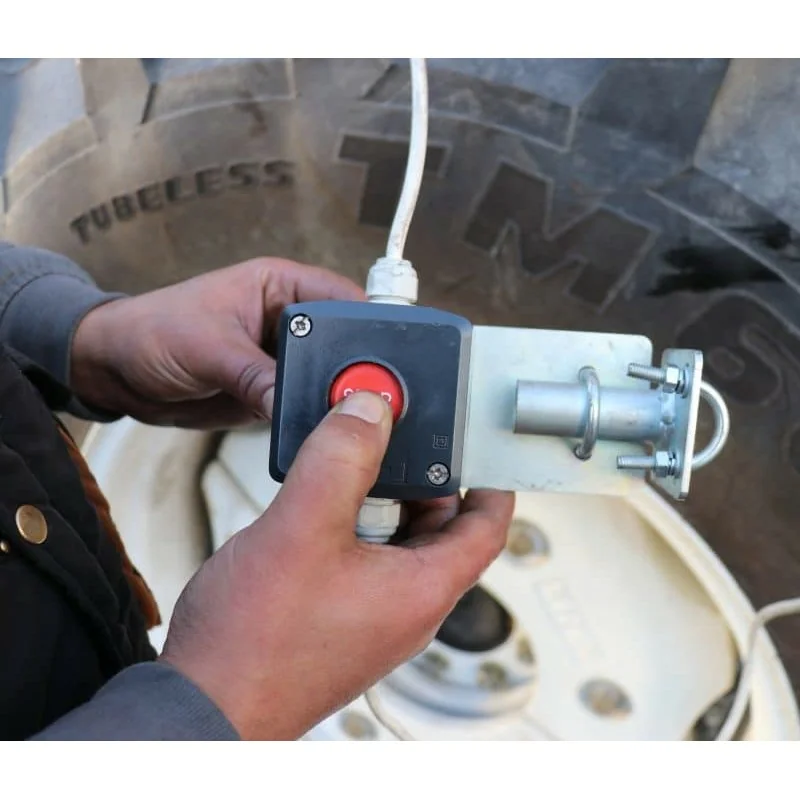

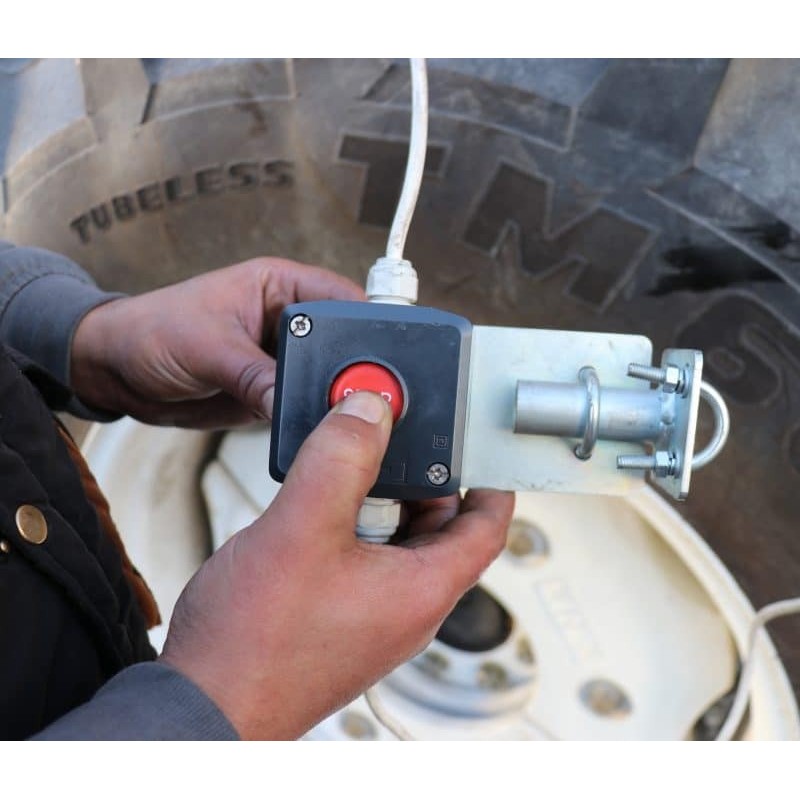

• Manual automatic stop device: Safety system that stops shovel movement when obstacles are detected.

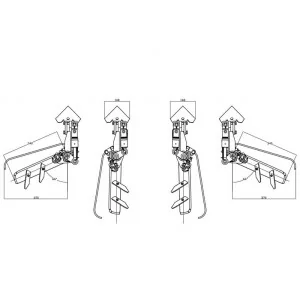

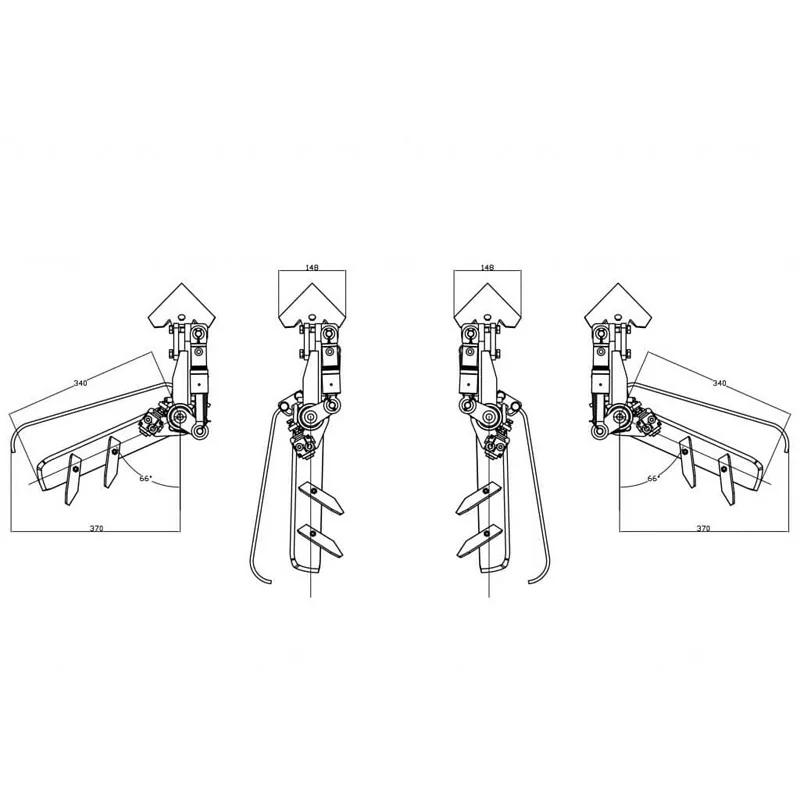

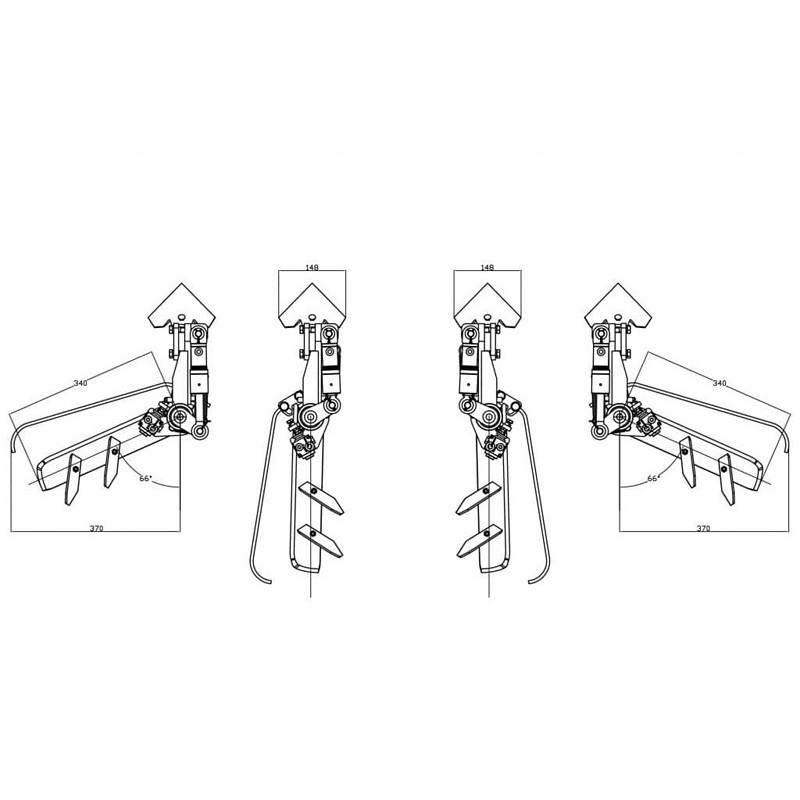

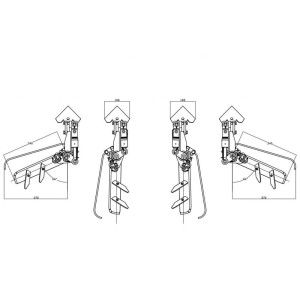

• Main dimensions of the intercepts arm
  • Width: 148 mm
  • Shovel length: 340 mm
  • Total length of the assembly: 370 mm
  • Working angle of the shovel: 66°


• Hydraulic control unit (in advanced version)
  • Multiplier
  • 2 body pump
  • 2 double acting solenoid valves
  • 45L oil tank
  • Radiator


• Product references
  • ES71799-I: Left intercepts
  • ES71799-D: Right interceptors
  • ES71801SI: 1 intercepts kit
  • ES7180101DI: 2 intercepts unit
  • ES71801DH: Double unit with hydraulic unit

Available versions and utilities

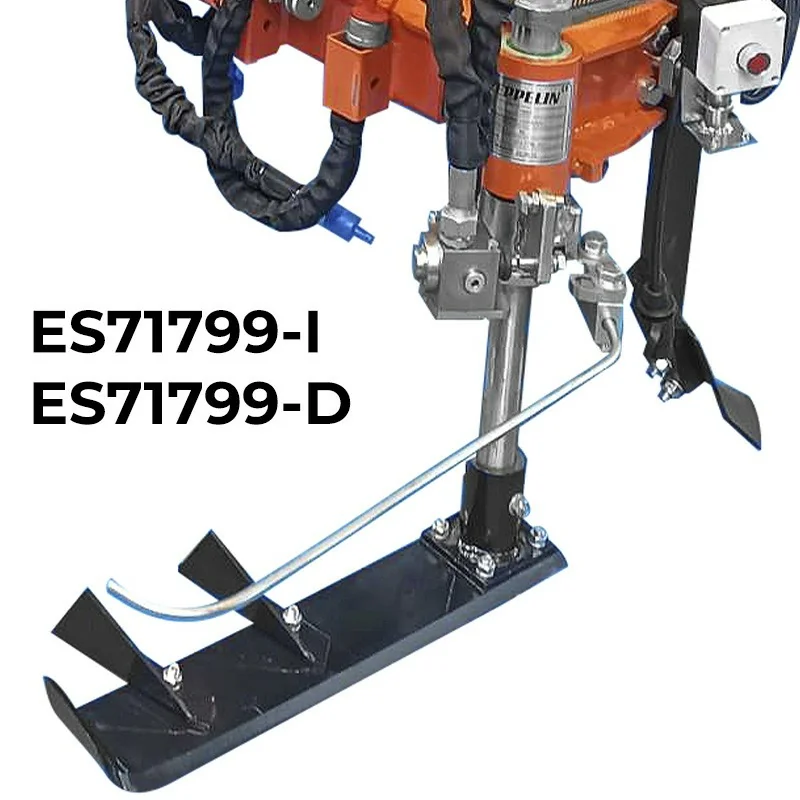

• Left (ES71799-I) and Right (ES71799-D) intercepts
  • Individual arm for left or right side.
  • Allows to customize the configuration according to the type of crop and row layout.
  • Ideal for work in hard to reach areas or to expand the system in the future.

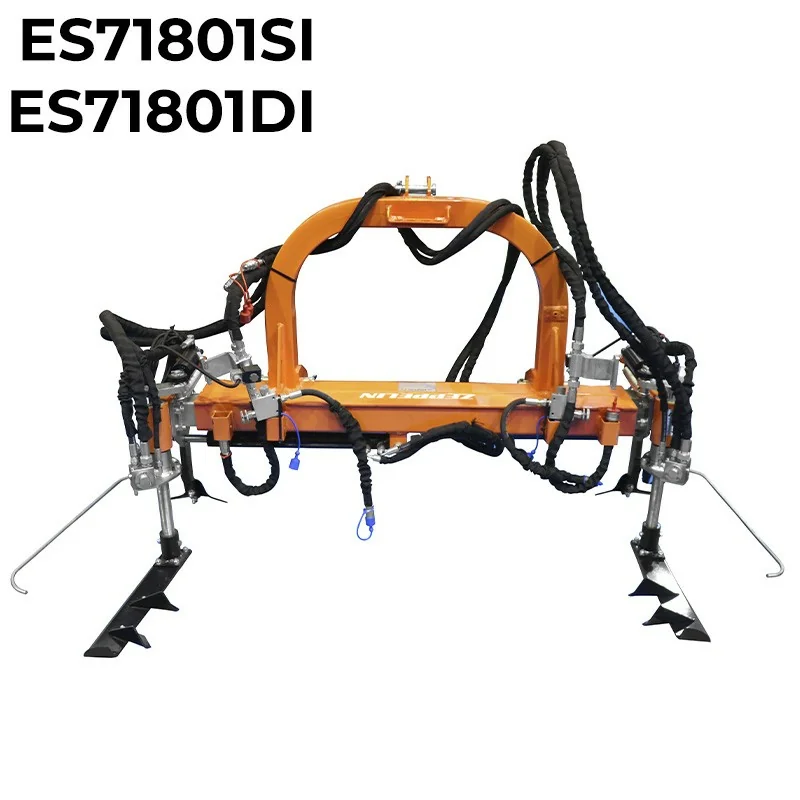

• Single unit (ES71801SI)
  • Includes a single interceptor (left or right) along with the frame and all the necessary components for its assembly and operation.
  • Recommended for small to medium farms, or when only one side of the windrow needs to be cleaned.

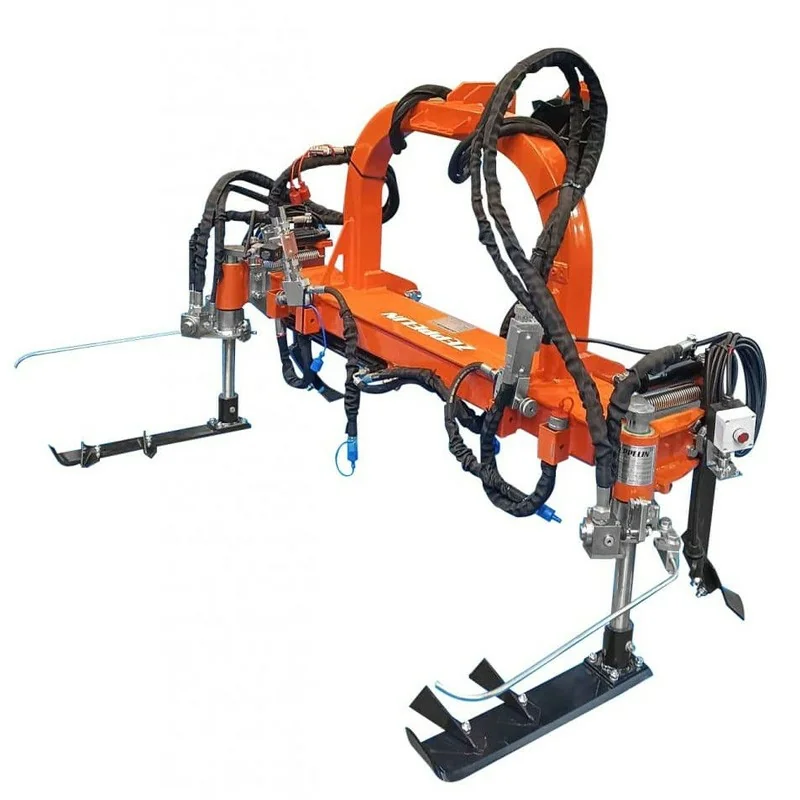

• Double equipment (ES71801DI)
  • Composed of two intercepts (left and right), the frame and all the necessary elements to work both sides of the windrow simultaneously.
  • Increases efficiency and reduces working time, ideal for medium and large farms.

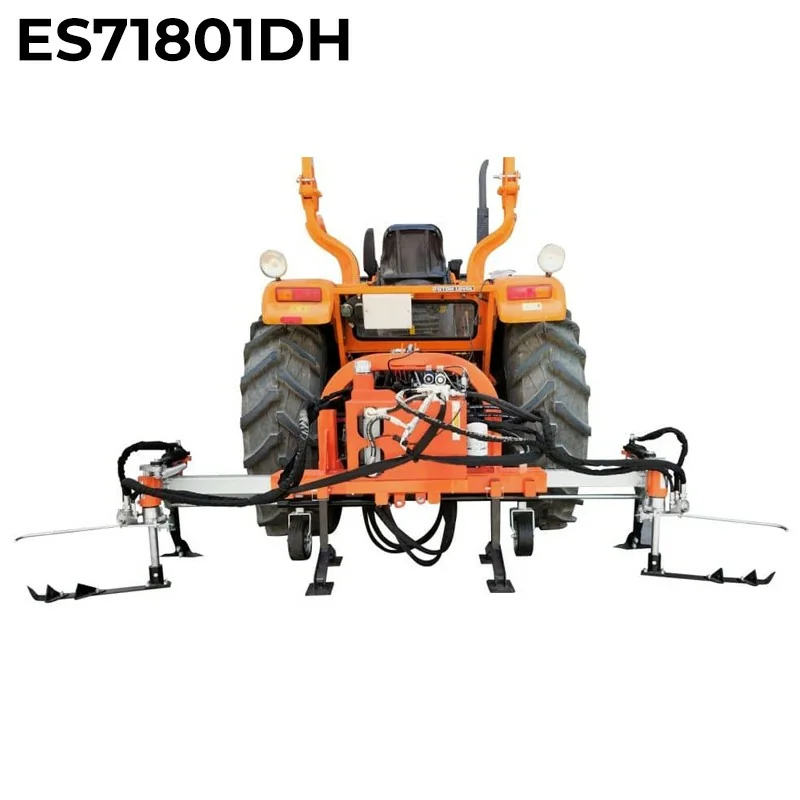

• Double equipment with hydraulic control unit (ES71801DH)
  • Includes two intercepts, the frame and a complete hydraulic power pack.
  • It allows to operate autonomously from the tractor's hydraulic system, offering maximum precision, safety and performance.
  • Perfect for professional farms looking for the greatest autonomy and intensive work capacity.

Differences and utilities of each version

• Single models (left/right): Flexibility to adapt to any crop configuration and expandability.
• Single equipment: Economic and efficient solution for basic needs.
• Double equipment: Higher productivity by working both sides of the swath in a single pass.
• Double unit with control unit: Total autonomy, ideal for tractors without their own hydraulic system or for those looking for maximum performance and control.

Applications

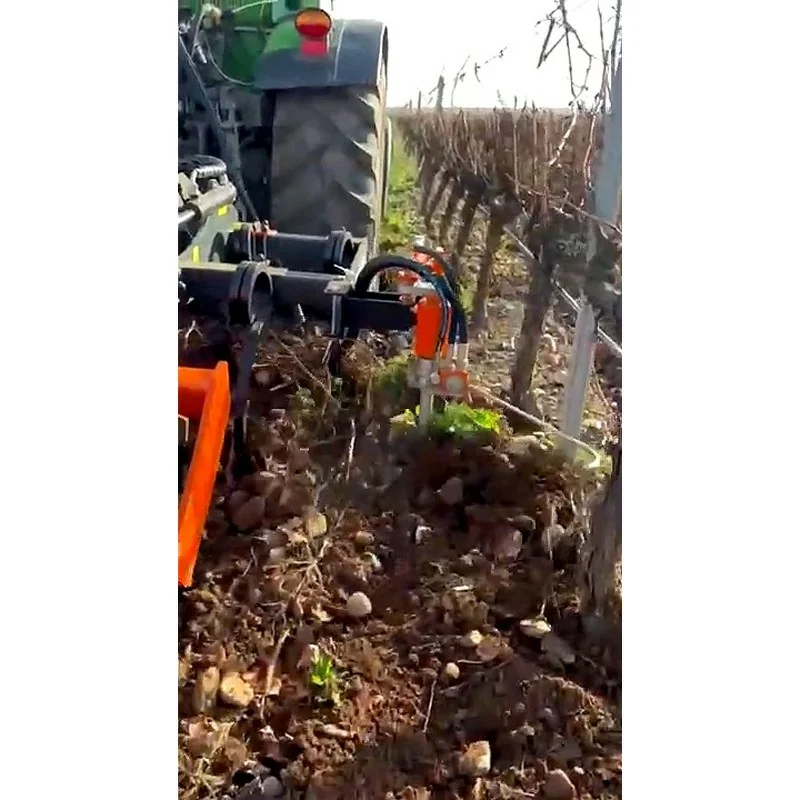

• Vineyards, olive groves, fruit orchards and any row crop where mechanical weed control is required.
• Ecological and efficient alternative to the use of chemical herbicides.

Outstanding advantages

• Electro-hydraulic technology: Precise and smooth blade movement control.
• Automatic stop device: Plant protection and maximum safety.
• Versatile mounting: Compatible with most tractors and agricultural frames.
• Robust construction: Heavy-duty materials for intensive and long-lasting use.
• Easy maintenance: Easy access to all components.
