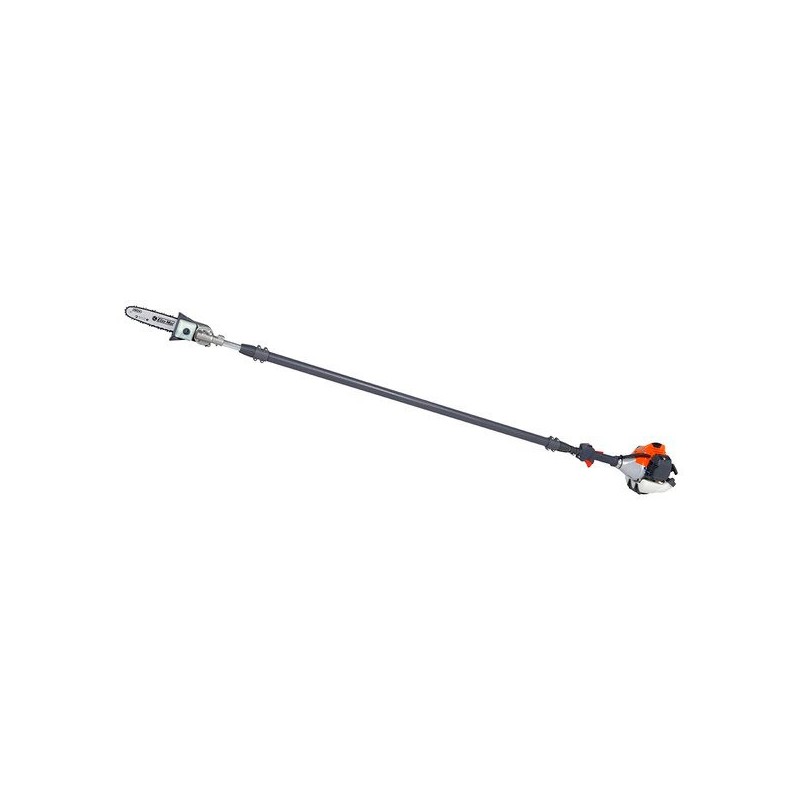

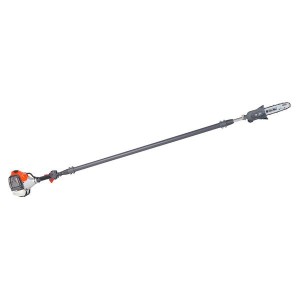

High lift mower Oleo Mac PPX271
The height pruner Oleo Mac PPX271 is powered by an Emak Euro 2 two stroke engine. This engine offers a power output of 1.3HP - 1kW and a displacement of 27cc.
The Emak Euro 2 engine provides a minimum speed of 2800rpm and a maximum speed of 12000rpm. In addition to an hourly consumption at maximum power of only 500g/h.
The mower has a digital ignition system with a Walbro coil and a CMR7A spark plug. The Power Supply and lubrication system of this machine consists of a Walbro carburetor. It also has a paper air filter with a fuel collector diode.

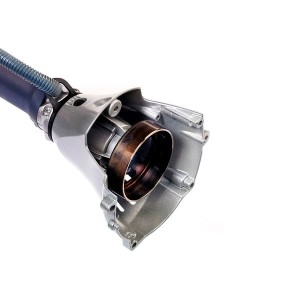

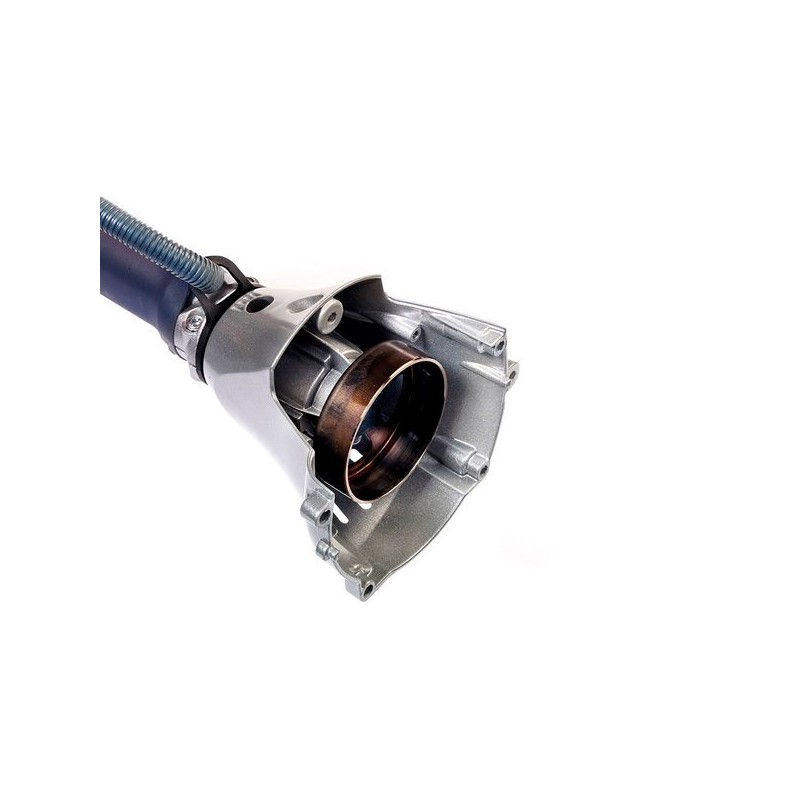

This model includes a 26mm diameter drive rod and an 8mm steel drive shaft. This drive shaft has a length of 2.6m.. It also comes standard with a 75 x 18mm FERODO two-element clutch.
This brushcutter produces a sound pressure of only 97db(A) and a power level of 111db(A). The vibration level of the pruner in operation is 4.2/5.9 m/s².
The pruner features a single harness and an anti-vibration system on the deck for user comfort. It also ensures comfort with a rubber coating on the front handle and a standard handle with safety lever on the rear handle.

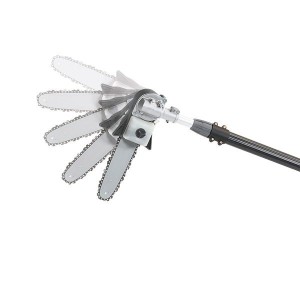

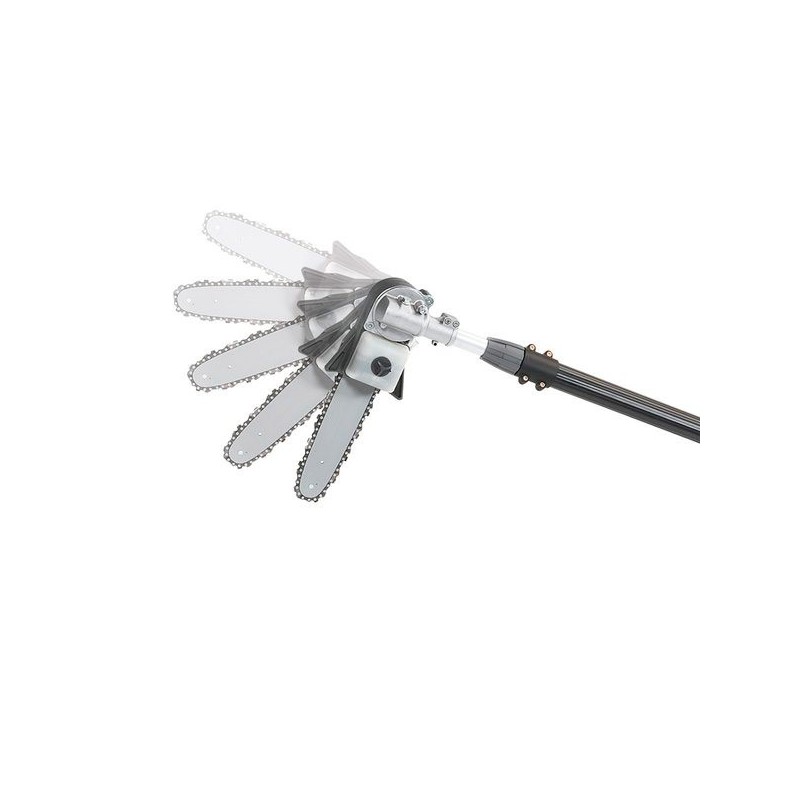

The length of the bar used on this pruning shear is 254mm. It also has a chain pitch of 3/8" inch and a thickness of 1.1mm.. It also incorporates an adjustable oil pump with an oil capacity of 0.18L with 6 sprocket teeth.
The machine is useful even for novice users, thanks to the EasyOn device, which makes it easy to start the mower. It also features the AlwaysOn system, which avoids the risk of the engine stalling.
This brushcutter has a weight without accessories of 7.9 kg, with a weight/power ratio of 7.9 kg/kW.
Features
| Engine |
Emak EURO 2 |
| Power |
1.3HP - 1kW |
| Displacement |
27cc |
| Minimum engine speed |
2800rpm |
| Maximum speed |
12000rpm |
| Hourly consumption (max. power) |
500g/h |
| Start |
Digital |
| Coil |
Walbro |
| Spark plug |
CMR7A |
| Carburetor |
Walbro |
| Fuel tank capacity |
0.6L |
| Air filter |
Paper with collecting diode |
| Transmission tube Ø |
26mm |
| Drive shaft Ø |
8mm Steel |
| Transmission tube length |
2.6m |
| Clutch |
2 elements with FERODO (75 x 18) |
| Harness |
Simple |
| Front handle |
with rubber coating |
| Rear handle |
Standard with safety lever |
| Sword Length |
254mm / 10" inch |
| Chain pitch |
3/8" inch |
| Chain thickness |
1.1mm |
| Oil tank capacity |
0.18L |
| Oil pump |
Adjustable |
| Acoustic Pressure |
97 db(A) |
| Sound Power |
111 db(A) |
| Vibration Level |
4.2 SX - 5.9 DX m/s² |
| Weight (without bar and chain) |
7.9 kg |
| Weight/power ratio |
7.9 kg/kW |
