CARAVAGGI Forage Harvester TPF 15 650 mm
- Power: 4-20 Hp
- Cutting diameter: 650 mm
- Hourly production: 6 m3 /h
€3,935.04 VAT incl.

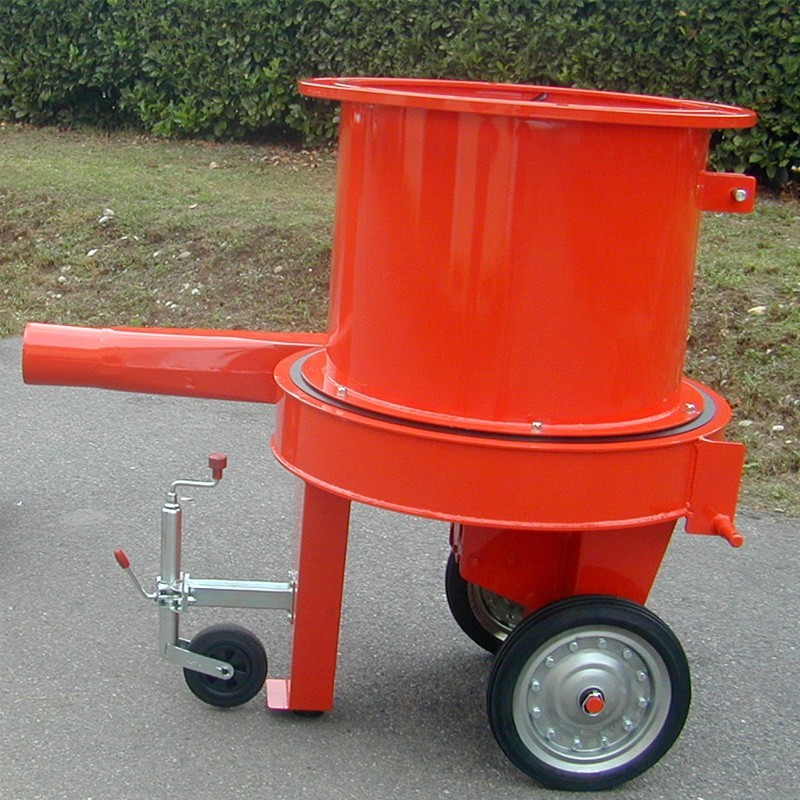

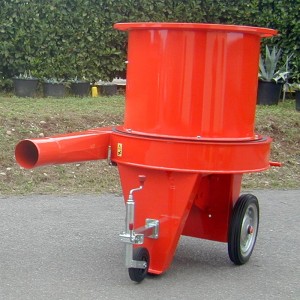

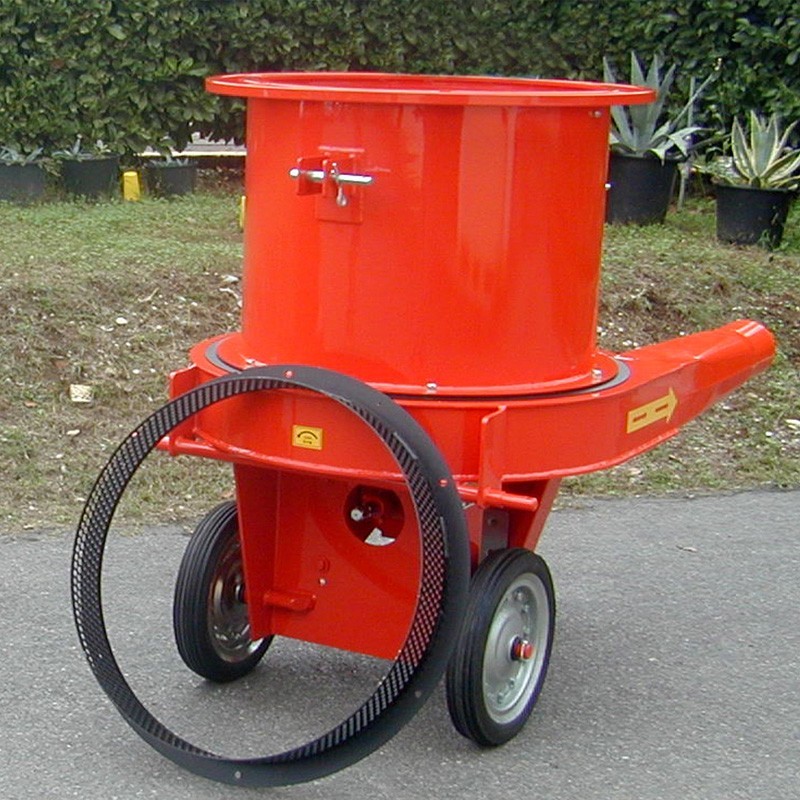

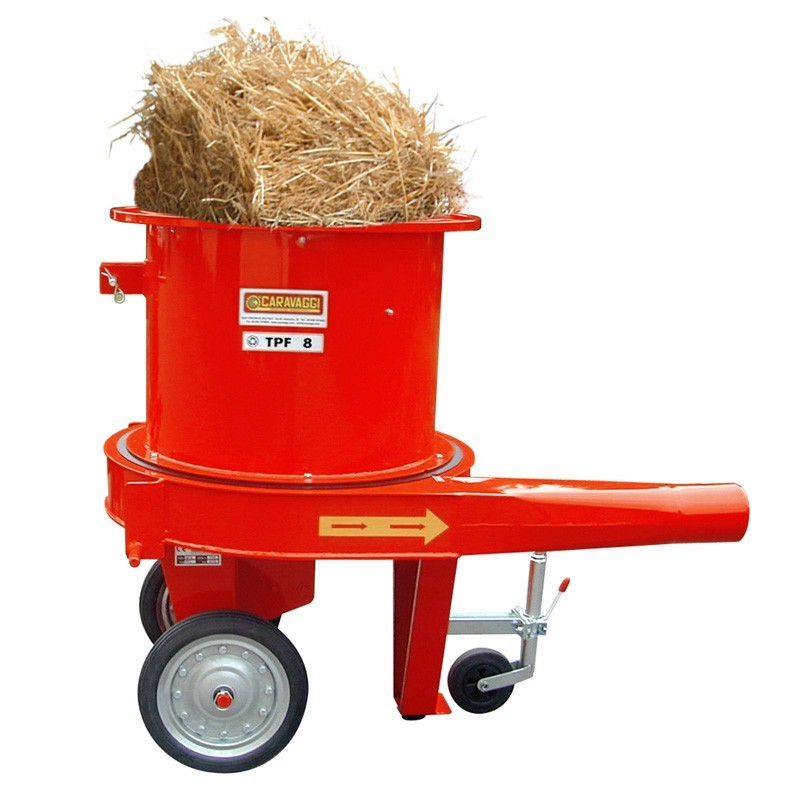

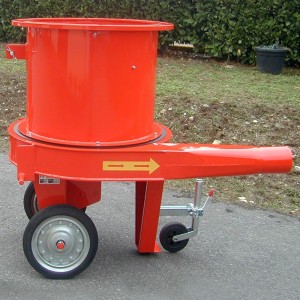

The CARAVAGGI TPF 8 forage harvester is a high-performance machine designed for the intensive processing of forage, straw and vegetable materials. With a production capacity of up to 12 m³/h, its 800 mm diameter rotor and cutting system with 8 breaker hammers and 48 knives ensure powerful and uniform shredding, suitable for demanding agricultural and industrial tasks.
It is available in versions with 30 HP electric motor or tractor PTO, offering flexibility according to the user's needs. Its interchangeable screen allows to select diameters from 8 to 80 mm, and its 2500 m³/h air flow ensures an excellent ejection of the shredded material through the 160 mm diameter discharge pipe.
Thanks to its robust and functional design, the TPF 8 facilitates work with a loading height of 1450 mm and a discharge height of 750 mm, optimizing the power Supply and collection processes. Its compact structure (1700 x 1050 x 1450 mm) and variable weight between 360 and 540 kg ( depending on the motorization) make it a reliable tool to increase productivity in the handling of biomass and organic waste.
MODEL | TPF 8 |
Rotor diameter | 800 mm |
Rotor width | 115 mm |
Hammers (breakers) | 8 |
Knives | 48 |
Screen diameter | from 8 to 80 mm |
Air flow rate | 2500 m3/h |
Loading opening | 760 mm |
Loading height | 1450 mm |
Material passage | 760 mm |
Unloading height | 750 mm |
Discharge pipe diameter | 160 mm |
Hourly production | 12 m3/h |
Length x width x height | 1700 x 1050 x 1450 mm |
Weight | 360 - 540 Kg |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
