Tractor brushcutters with side disc Zeppelin Boomerang
Tractor brushcutters with side disc Zeppelin Boomerang
Tractor brushcutters with side disc Zeppelin Boomerang
Tractor brushcutters with side disc Zeppelin Boomerang
Tractor brushcutters with side disc Zeppelin Boomerang
Tractor brushcutters with side disc Zeppelin Boomerang

Tractor brushcutters with side disc Zeppelin Boomerang


  • Total working width: 1450 + 550 mm | 1450 + 1100 mm | 1750 + 450 mm
  • Power requirement: 25-50 Hp up to 50-90 Hp
  • Weight: 312 kg | 384 kg | 330 kg

CARDAN SHAFT INCLUDED

Assembly and set-up INCLUDED
En stock
icon Type of cut
Type of cut
Floating blades
icon Working width PTO
Working width PTO
145 - 175 cm
icon Tractor power
Tractor power
25 - 90 HP
icon Cardan shaft
Cardan shaft
Including
icon Type of coupling
Type of coupling
Lateral displacement
icon Displacement
Displacement
Hydraulic
icon ✔️
✔️
With wheels
icon Includes
Includes
Interfila Disc
icon Number of floating blades
Number of floating blades
6 + 2
icon Weight
Weight
312 - 330 kg
€2,576.40 excl. VAT
- 7%
€2,396.05
€2,396.05 VAT incl.
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


Tractor brushcutters with side disc Zeppelin Boomerang
€2,396.05
Select
Qty

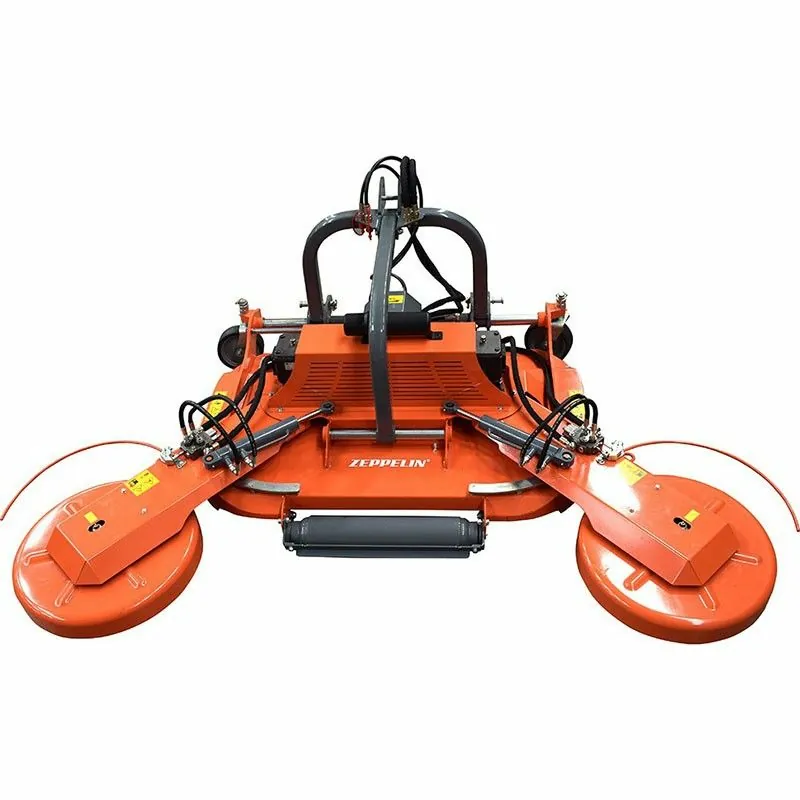

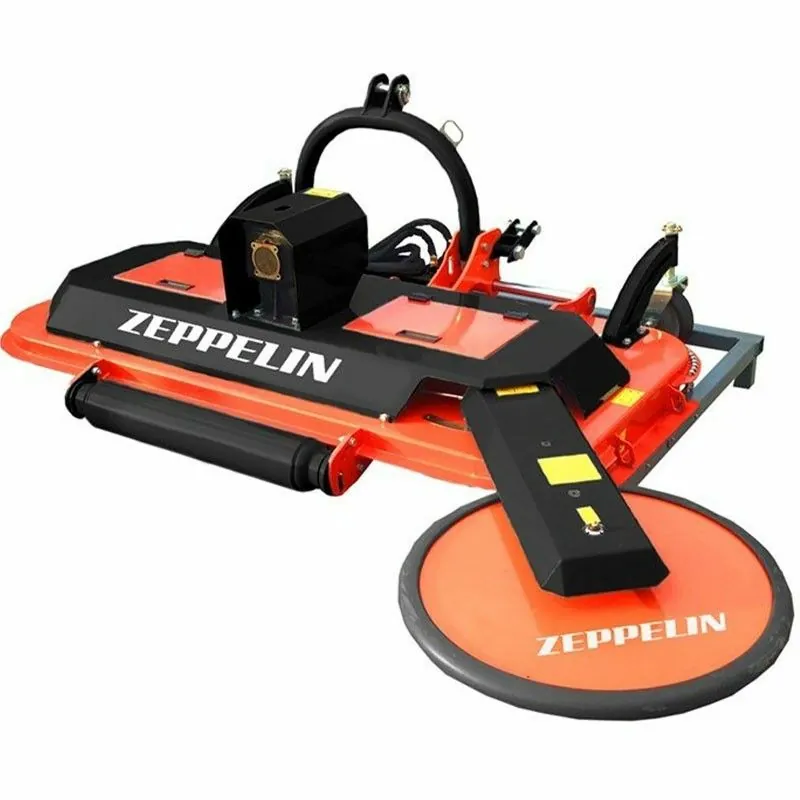

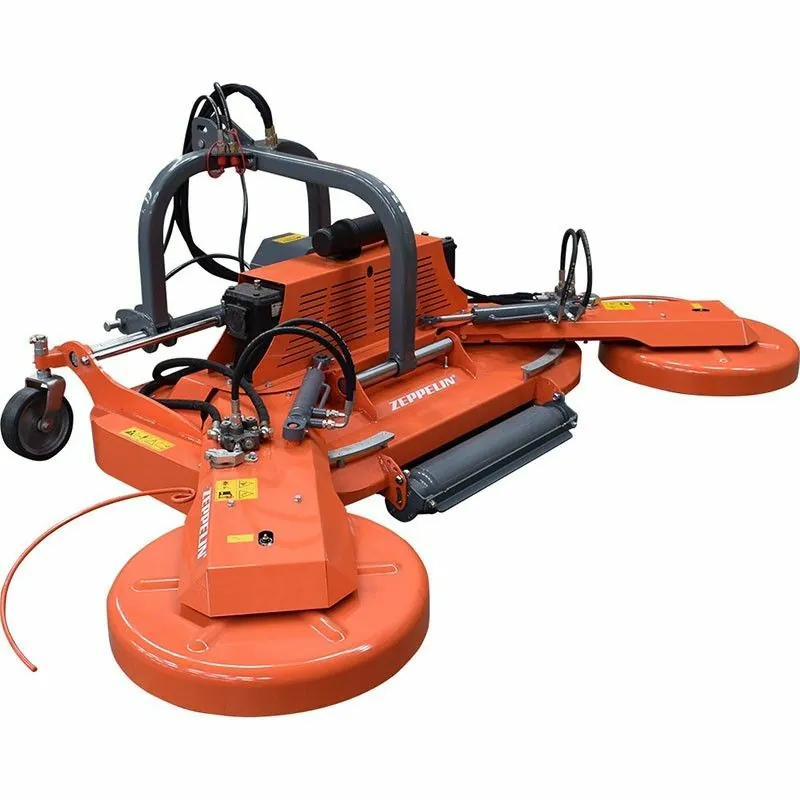

Side Disc Brushcutters Zeppelin Boomerang

The side disc brushcutter Zeppelin Boomerang has a folding side disc, which widens the working width of the machine, and allows it to adapt to the size of the terrain in which it is operating.

To further adapt to any situation, the product has several models as purchase options, models which vary the required power, working width and number of discs.

Last but not least, it comes with several amenities such as adjustable cutting height, swivel front wheels and front chain deflector.

Features

Models ESDES150DISC1Z ESDES150DISC2Z ESDES180DISC1Z
Dimensions (cm) 190 x 168 x 74 220 x 168 x 74 220 x 168 x 74
Total working width (mm) 1450 + 550 1450 + 1100 1750 + 450
Folded working width (mm) 1450 + 100 1450 + 700 1750 + 100
Elevation 20/40/60 20/40/60 20/40/60
Discs 3 + 1 3 + 2 3 + 1
Interrow discs 1 2 1
Displacement 540 540 540
PTO (rpm) 540 540 540
Power required (Hp) 25-50 25-70 50-90
Belts 4 5 4
Weight (kg) 312 384 330

Specifications

  • Rear-mounted offset brushcutter, with extra-flat design, suitable for working in vineyards and orchards.
  • Standard equipment: 3-point attachment, Cat I (mod.250 Cat II).
  • Adjustable cutting height, swivel front wheels and front chain deflector.
IMPORTANT NOTICES
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
