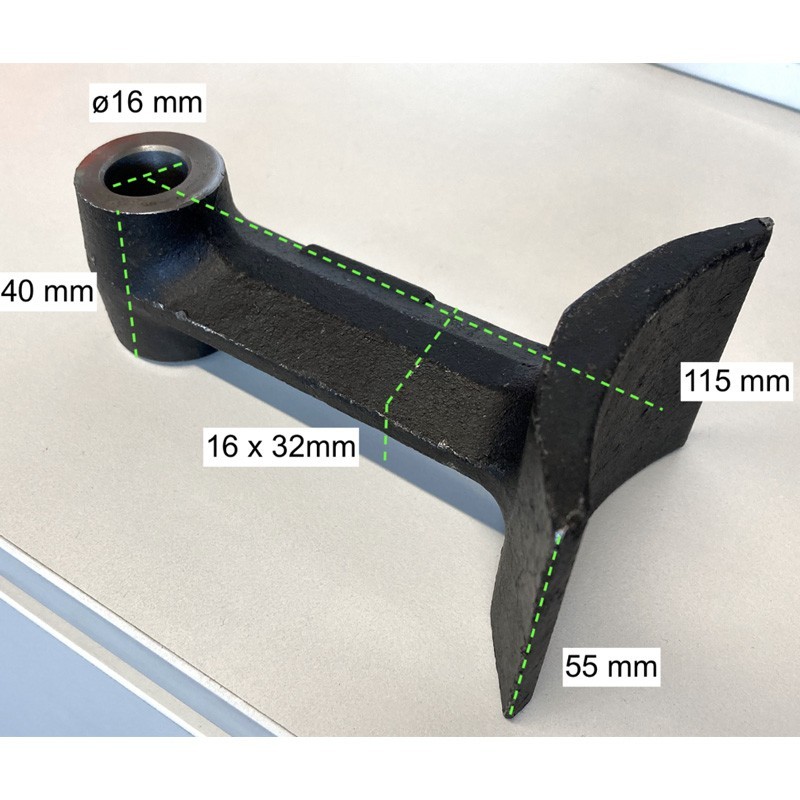

10 ARM hammers - Condor DELEKS
- 10 ARM hammers - Condor DELEKS
€174.72 VAT incl.
Deleks products take about 15 to 20 days. |

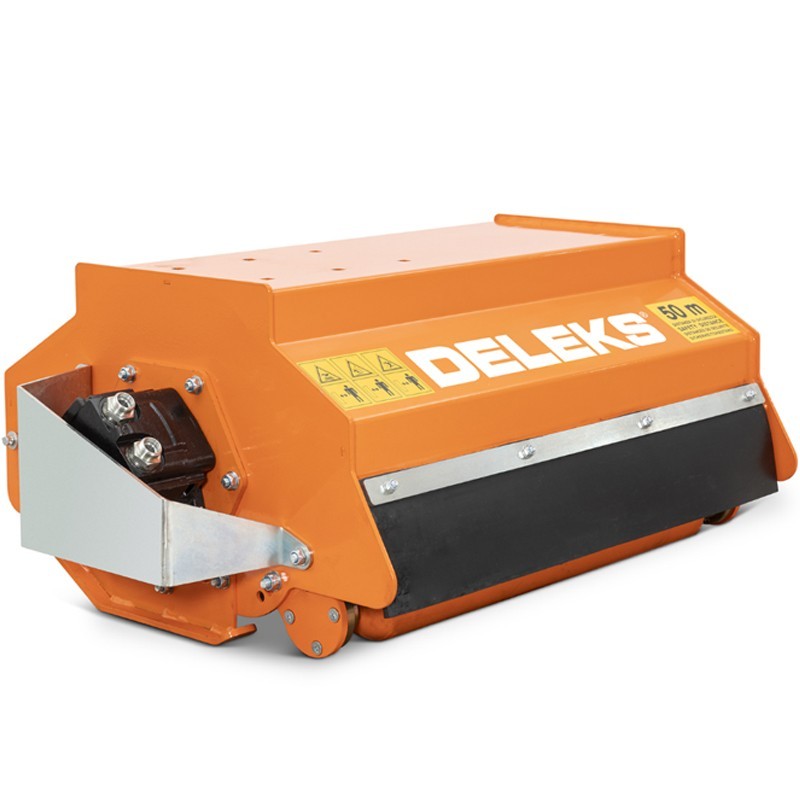

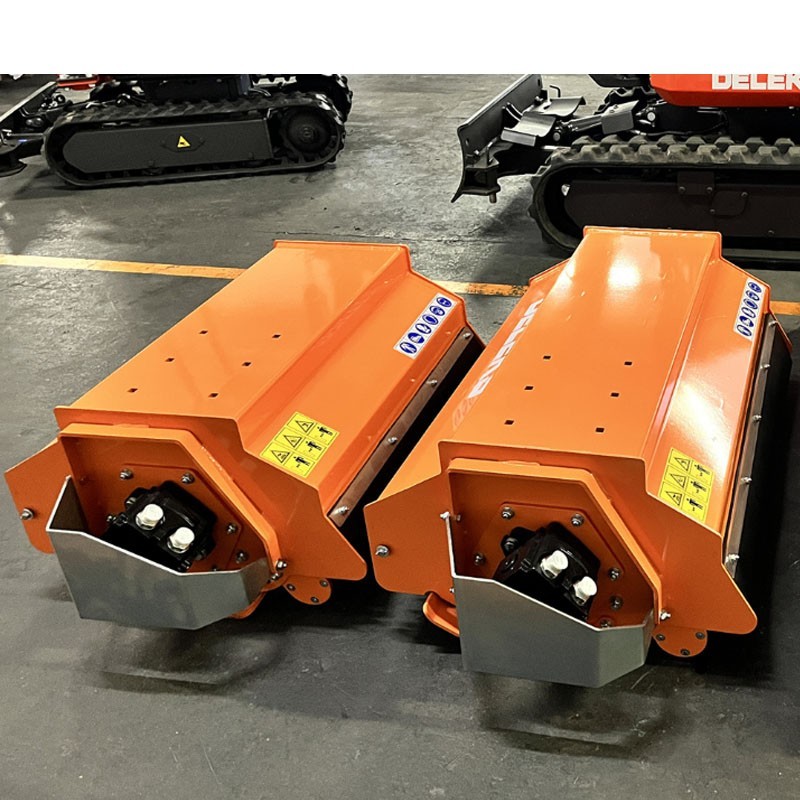

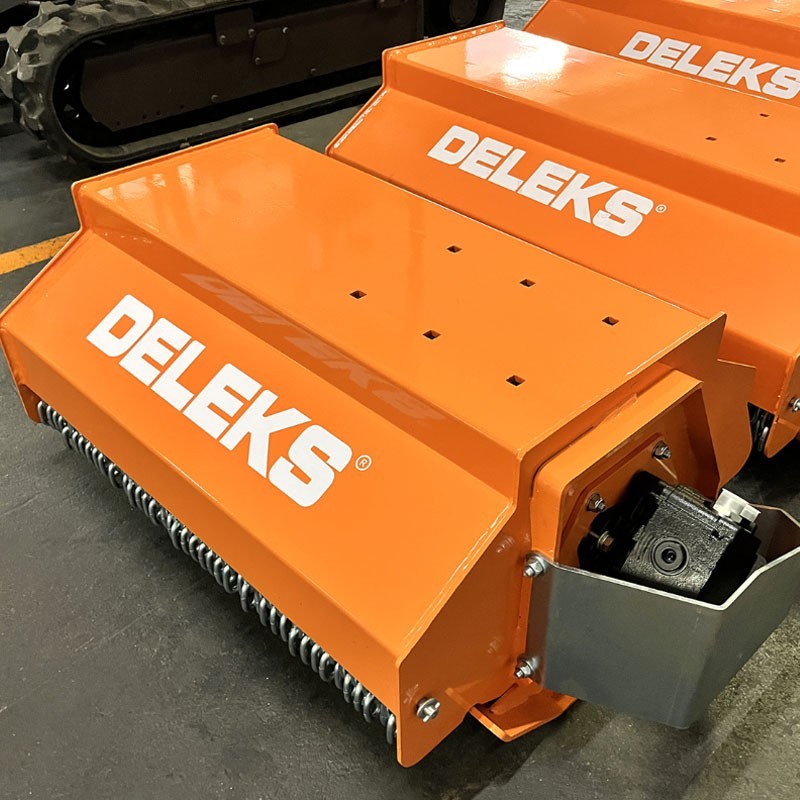

Hydraulic brushcutter for mini excavators from 2.0 - 5.0 tons, this brushcutter is made for brambles, bushes, ditches, banks, embankments, branches. It is adapted for grass and pruning up to 4 cm in diameter.

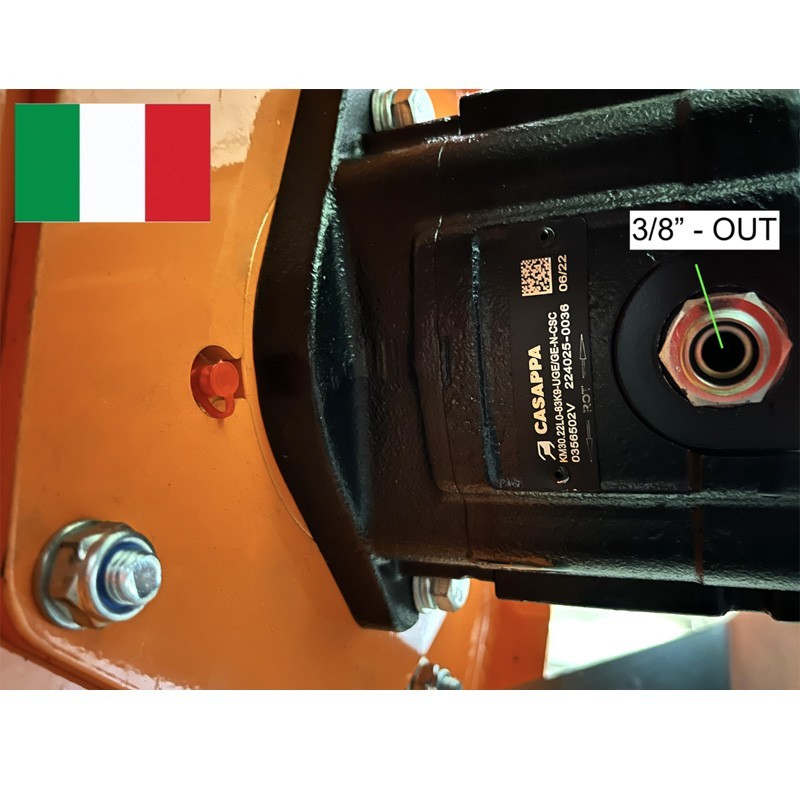

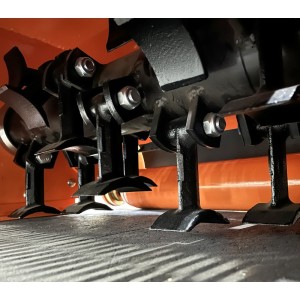

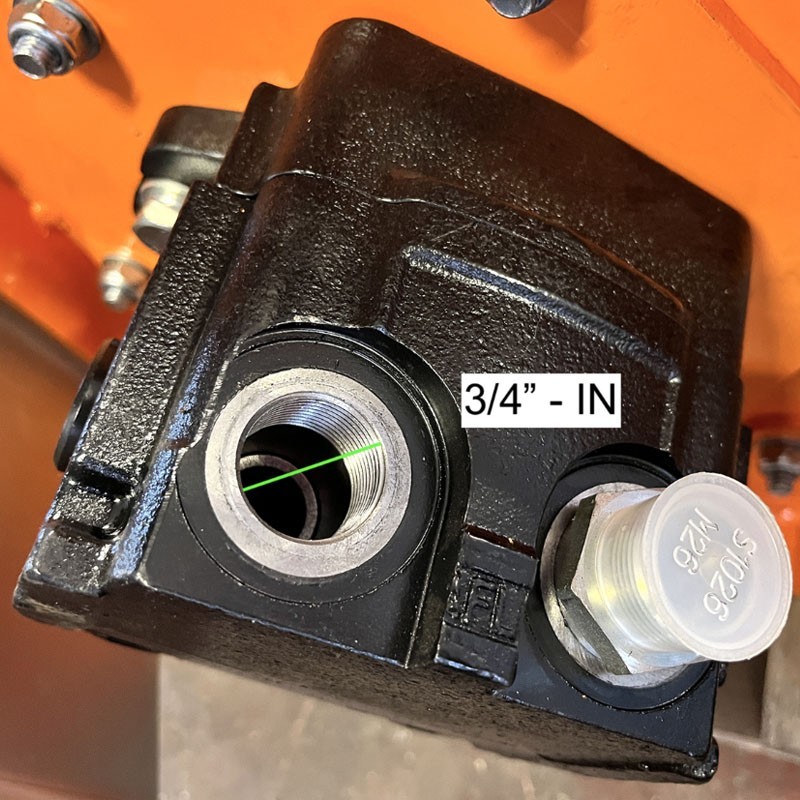

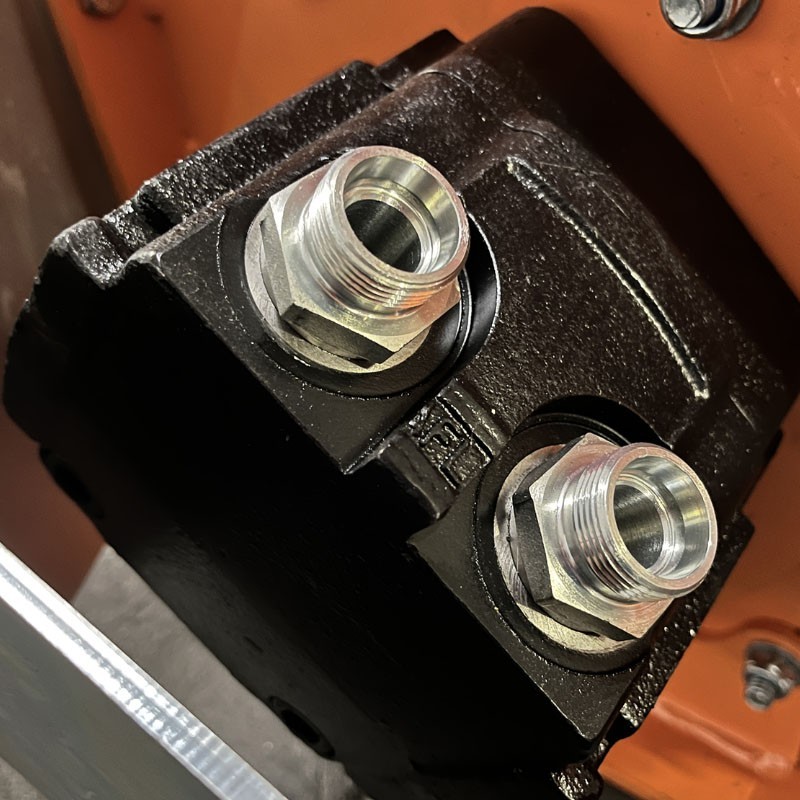

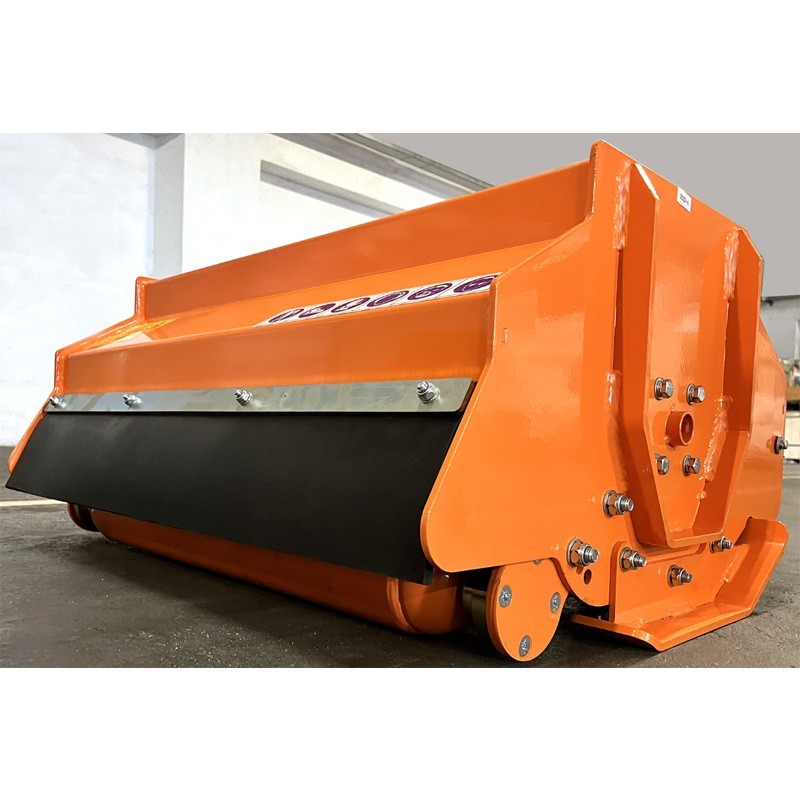

Depending on the selected brushcutter, it has a number of hammers ranging from 16 to 24 hammers, a Casappa engine made in Italy, a roller and skids adjustable in height, as well as a bi-directional hammer rotor (double acting pedal is required).
Certain requirements have to be met to operate the head: it should preferably have a double pump, 1 for the carriage and 1 for the services(pump of at least 65/100 l/min), the pump needs a third drainage pipe that goes directly to the tank.
Model | ARM80 | ARM100 | ARM120 |
Working width | 800.0 mm | 1000.0 mm | 1200.0 mm |

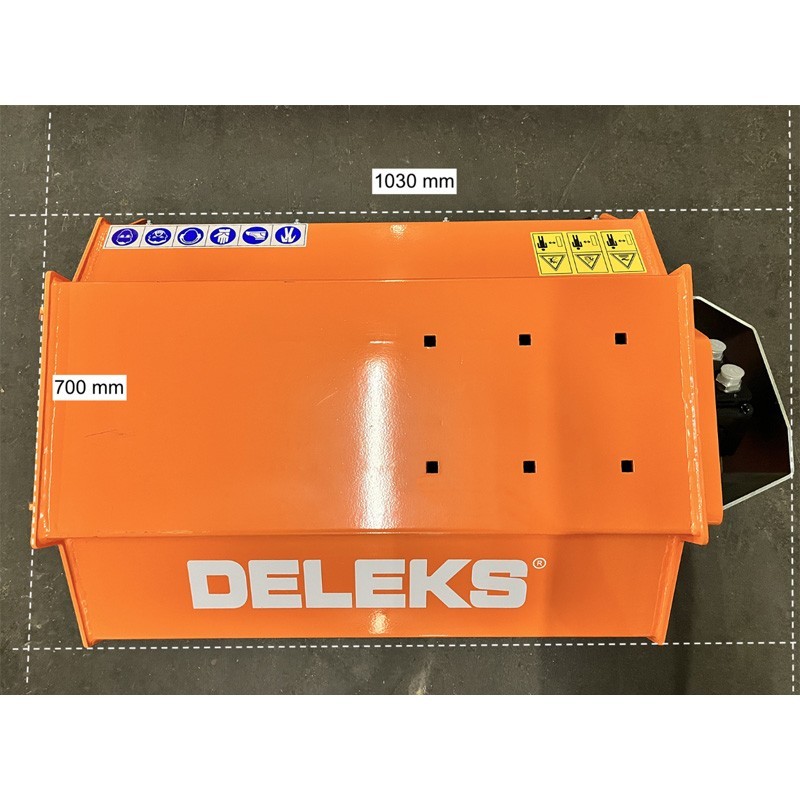

Overall width | 1030.0 mm | 1230.0 mm | 1430.0 mm |
Cutting height min/max | 10.0 - 50.0 mm | 10.0 - 50.0 mm | 10.0 - 50.0 mm |
Weight | 150.0 kg | 178.0 kg | 195.0 kg |

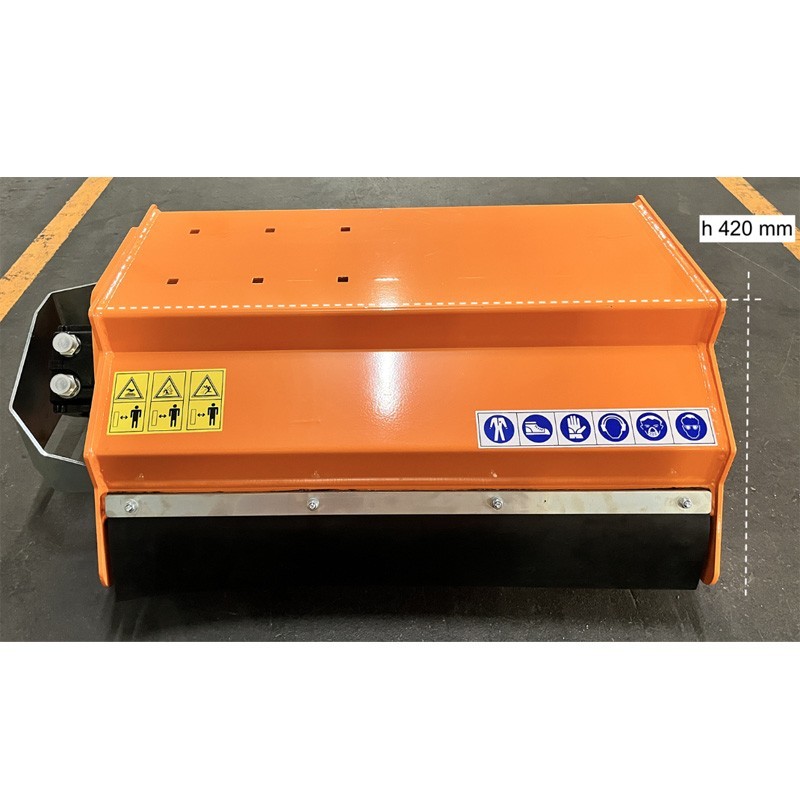

Hood height | 420.0 mm | 420.0 mm | 420.0 mm |
Number of hammers | 16 | 24 | 24 |
Max. cutting diameter | 4.0 cm | 4.0 cm | 4.0 cm |
Plate thickness | 5.0 mm | 5.0 mm | 5.0 mm |
Drive: rotor speed | 2200 r/min | ||
Rotor: diameter | 110.0 mm | ||
Rotor: bearing type and dimension | 6008 | ||
Rotor: balancing | Electronic | ||

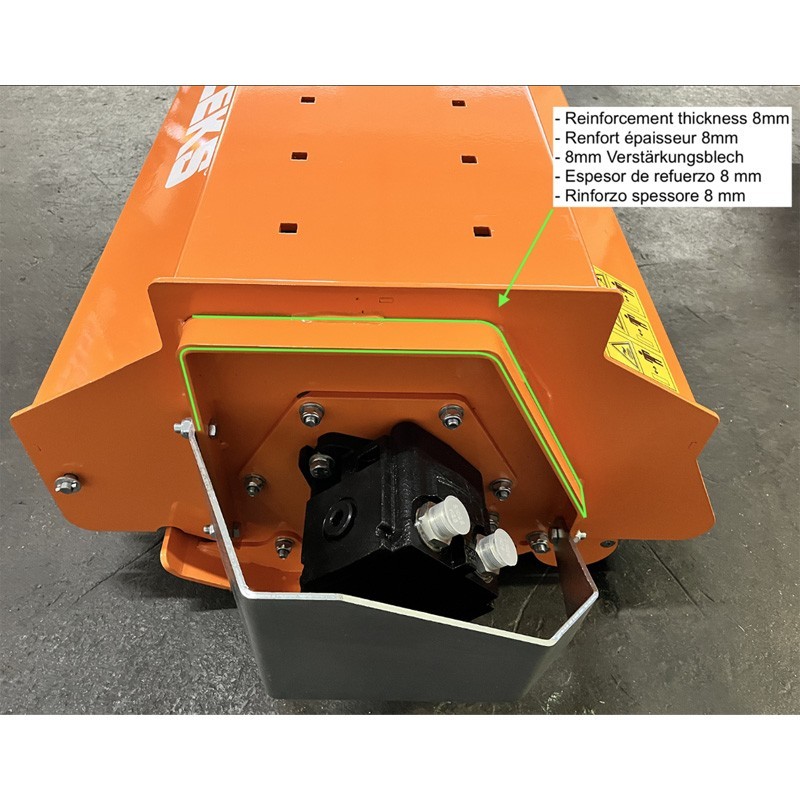

Rotor: sheet thickness | 8.0 mm | ||
Roll: bearing type and dimension | UC205 | ||
Oil pressure min./max | 70 - 140 bar | ||
Optimal oil flow | 65 - 100 l/min | ||
Hood length | 700.0 mm | ||
Packing dimensions | 105 x 70 x 50 cm | 125 x 70 x 50 cm | 145 x 70 x 50 cm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
